Rubber coated systems

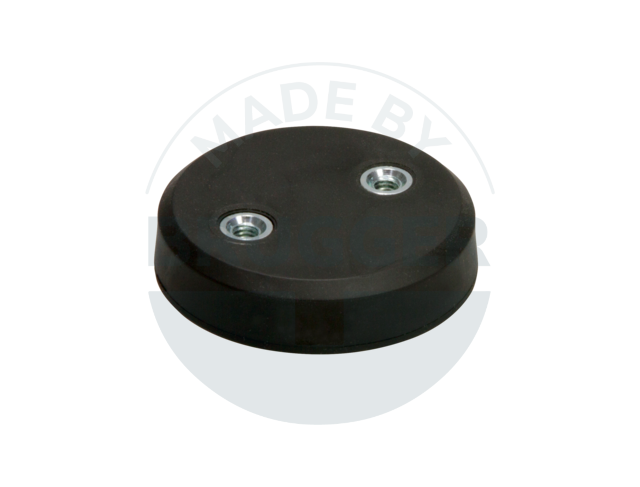

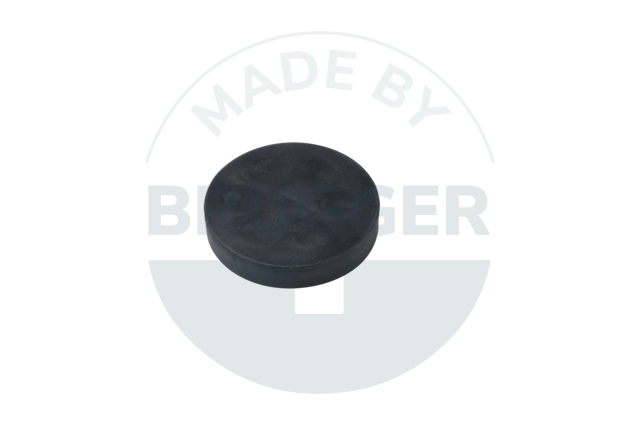

Magnet assembly of NdFeB, rubber coat black, with 2 internal threads

PRODUCT INFORMATION:
These systems are used especially on delicate surfaces. Due to the rubber coating occur neither scratches nor discoloration. Moreover the slip resistance is improved thanks to rubber coating.

Alternative to the standard we also offer individual solutions:
» Other colours rubber coating
» Rubber coating harder or softer
» Printable rubber coat


Data sheet

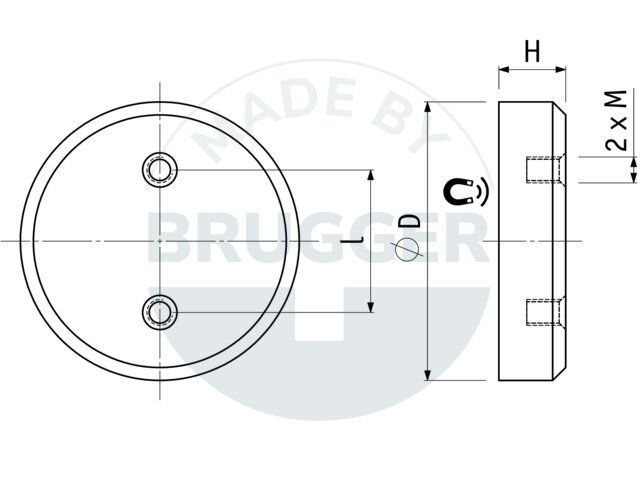

Article numberD mmH mmThread Ml mmAdhesive force* NShear force* NWeight gTemperature °C
AS043NdA-04s-03AUSGELISTET43 10,3 M422 +0.1/-0.1100383760 Download CAD file
Article number: AS043NdA-04s-03AUSGELISTET
D mm: 43
H mm: 10,3
Thread M: M4
l mm: 22 +0.1/-0.1
Adhesive force* N: 100
Shear force* N: 38
Weight g: 37
Temperature °C: 60
AS043NdA-05s-00AUSGELISTET43 10,3 M527 +0.1/-0.1100383760 Download CAD file
Article number: AS043NdA-05s-00AUSGELISTET
D mm: 43
H mm: 10,3
Thread M: M5
l mm: 27 +0.1/-0.1
Adhesive force* N: 100
Shear force* N: 38
Weight g: 37
Temperature °C: 60
AS057NdA-06s-00AUSGELISTET57 11,3 M632 +0.1/-0.1200788660 Download CAD file
Article number: AS057NdA-06s-00AUSGELISTET
D mm: 57
H mm: 11,3
Thread M: M6
l mm: 32 +0.1/-0.1
Adhesive force* N: 200
Shear force* N: 78
Weight g: 86
Temperature °C: 60
AS057NdA-06s-01AUSGELISTET57 11,3 M636 +0.1/-0.1200788660 Download CAD file
Article number: AS057NdA-06s-01AUSGELISTET
D mm: 57
H mm: 11,3
Thread M: M6
l mm: 36 +0.1/-0.1
Adhesive force* N: 200
Shear force* N: 78
Weight g: 86
Temperature °C: 60
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
