Rubber coated systems

Magnet assembly of NdFeB, rubber coat white, with internal thread, rectangular

These systems are used especially on delicate surfaces. Due to the rubber coating occur neither scratches nor discoloration. Moreover the slip resistance is improved thanks to rubber coating.

Alternative to the standard we also offer individual solutions:
» Other colours rubber coating
» Rubber coating harder or softer
» Printable rubber coat

Data sheet
Product variants
Article numberL mmB mmH mmThread MxLAdhesive force* NShear force* NWeight gTemp. °C
A43x31A-Kw2GBM443 31 6,9 M4x4.5146472860 Download CAD file

Magnetsystem 43x31x6.9mm aus NdFeB, Gummimantel weiß, mit 2x Innengewinde, rechteckig

Article number: A43x31A-Kw2GBM4
L mm: 43
B mm: 31
H mm: 6,9
Thread MxL: M4x4.5
Adhesive force* N: 146
Shear force* N: 47
Weight g: 28
Temp. °C: 60
A43x31A-KwM443 31 6,9 M4x4.5105332760 Download CAD file

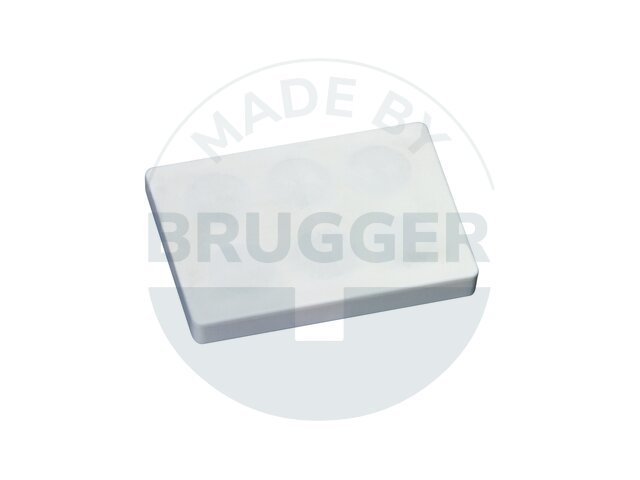

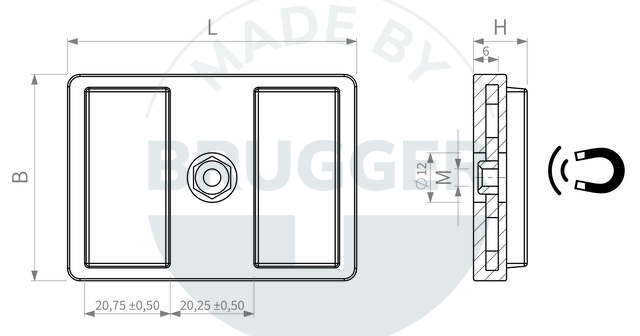

Magnetsystem 43x31x6.9mm aus NdFeB, Gummimantel weiß, mit Innengewinde, rechteckig

Article number: A43x31A-KwM4
L mm: 43
B mm: 31
H mm: 6,9
Thread MxL: M4x4.5
Adhesive force* N: 105
Shear force* N: 33
Weight g: 27
Temp. °C: 60
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
