Rubber coated systems

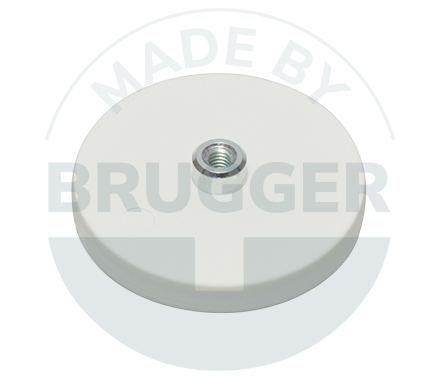

Magnet assembly of NdFeB, rubber coat white, with screwed bush

PRODUCT INFORMATION:
These systems are used especially on delicate surfaces. Due to the rubber coating occur neither scratches nor discoloration. Moreover the slip resistance is improved thanks to rubber coating.

Alternative to the standard we also offer individual solutions:
» Other colours rubber coating
» Rubber coating harder or softer
» Printable rubber coat





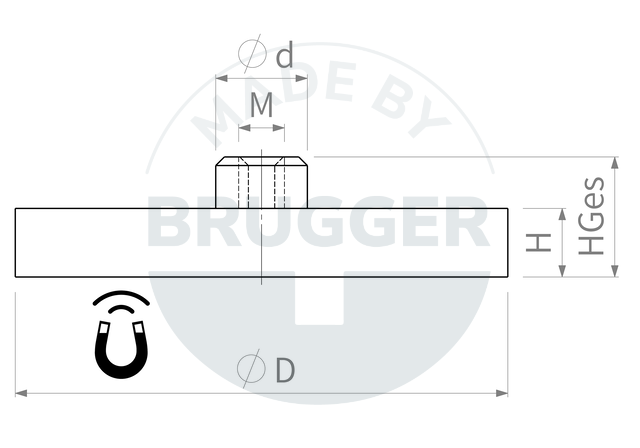

Data sheet
Product variants
Article numberD mmd mmH mmHGes mmThread MAdhesive force* NShear force* NWeight gTemperature °CSurface
A12A-KwM4NEU12 87 14,5M4134660weiß Download CAD file
Rubberised magnet with threaded bush 12mm M4 | © Brugger GmbH

Magnetsystem ø 12 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: A12A-KwM4NEU
D mm: 12
d mm: 8
H mm: 7
HGes mm: 14,5
Thread M: M4
Adhesive force* N: 13
Shear force* N: 4
Weight g: 6
Temperature °C: 60
Surface: weiß
A18A-KwM4NEU18 86 11,5M437118.760weiß Download CAD file

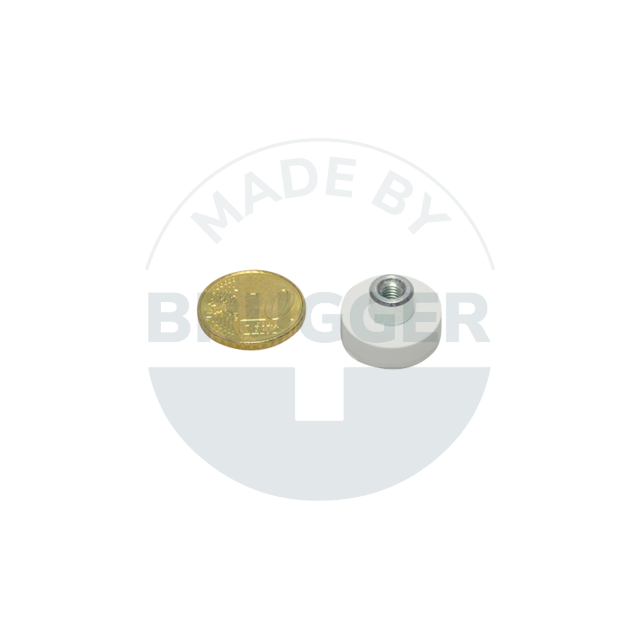

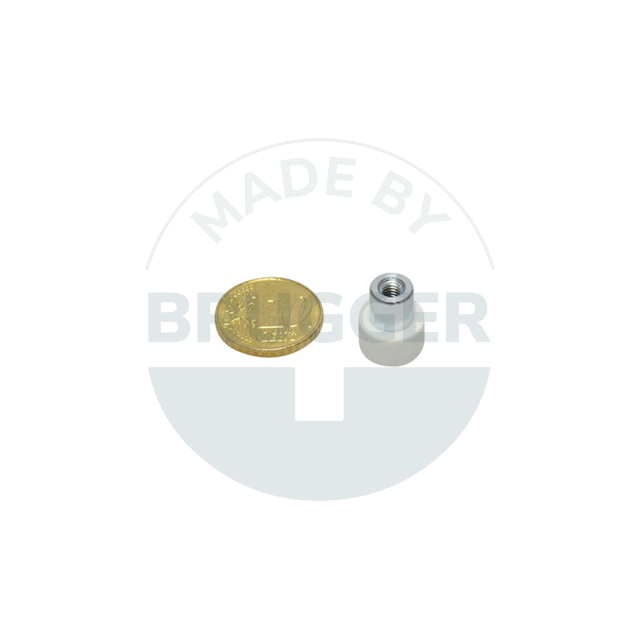

Rubberised magnet with threaded bush 18mm M4 | © Brugger GmbH

Magnetsystem ø 18 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: A18A-KwM4NEU
D mm: 18
d mm: 8
H mm: 6
HGes mm: 11,5
Thread M: M4
Adhesive force* N: 37
Shear force* N: 11
Weight g: 8.7
Temperature °C: 60
Surface: weiß
A22A-KwM4NEU22 86 11,5M458151360weiß Download CAD file

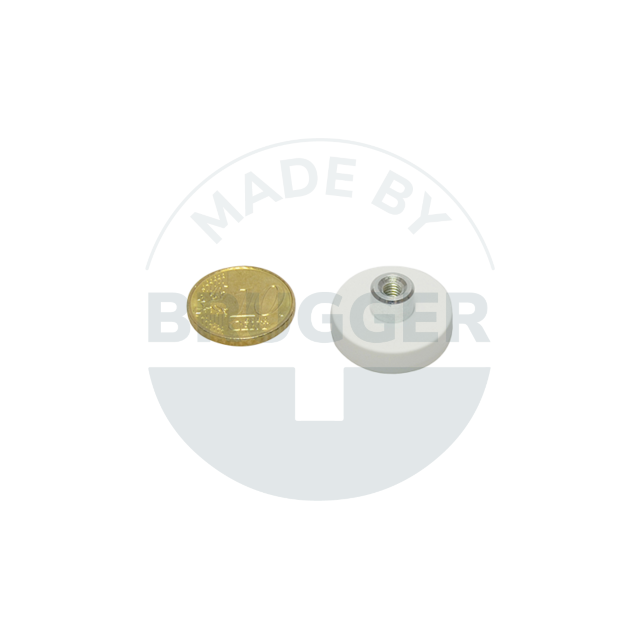

Rubberised magnet with threaded bush 22mm M4 | © Brugger GmbH

Magnetsystem ø 22 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: A22A-KwM4NEU
D mm: 22
d mm: 8
H mm: 6
HGes mm: 11,5
Thread M: M4
Adhesive force* N: 58
Shear force* N: 15
Weight g: 13
Temperature °C: 60
Surface: weiß
A31A-KwM4 ¹NEU31 86 11,5M489182260weiß Download CAD file
Rubberised magnet with threaded bush | © Brugger GmbH
Article number: A31A-KwM4 ¹NEU
D mm: 31
d mm: 8
H mm: 6
HGes mm: 11,5
Thread M: M4
Adhesive force* N: 89
Shear force* N: 18
Weight g: 22
Temperature °C: 60
Surface: weiß
AS031NdA-04w-00NEU31 86 11,5M489292360weiß Download CAD file

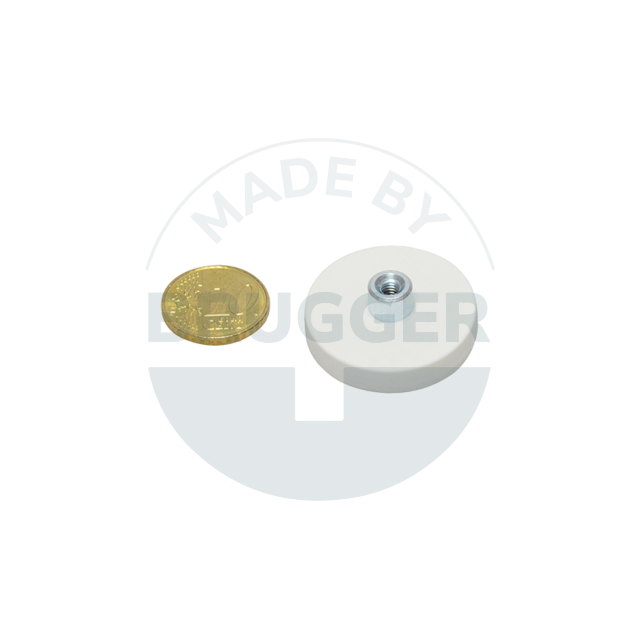

Rubberised magnet with threaded bush | © Brugger GmbH

Magnetsystem ø 31 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: AS031NdA-04w-00NEU
D mm: 31
d mm: 8
H mm: 6
HGes mm: 11,5
Thread M: M4
Adhesive force* N: 89
Shear force* N: 29
Weight g: 23
Temperature °C: 60
Surface: weiß
A43A-KwM4NEU43 86 10,5M4100253060weiß Download CAD file

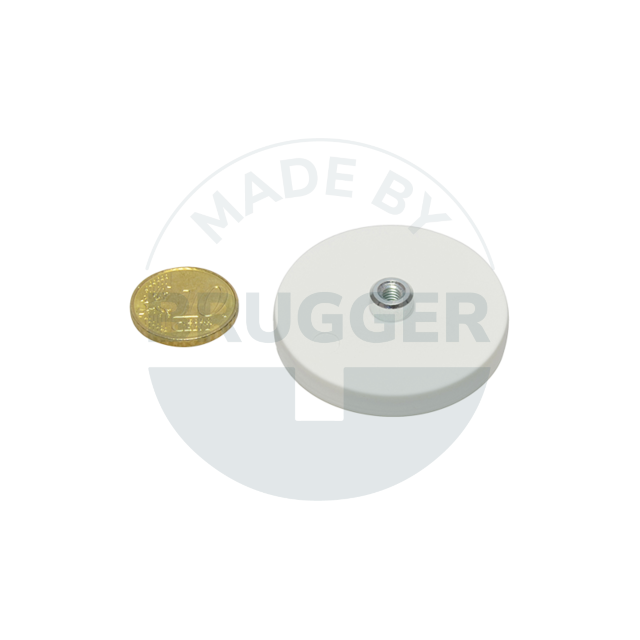

Rubberised magnet with threaded bush 43mm M4 | © Brugger GmbH

Magnetsystem ø 43 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: A43A-KwM4NEU
D mm: 43
d mm: 8
H mm: 6
HGes mm: 10,5
Thread M: M4
Adhesive force* N: 100
Shear force* N: 25
Weight g: 30
Temperature °C: 60
Surface: weiß
A43A-KwM5NEU43 86 10,5M5100253160weiß Download CAD file
Article number: A43A-KwM5NEU
D mm: 43
d mm: 8
H mm: 6
HGes mm: 10,5
Thread M: M5
Adhesive force* N: 100
Shear force* N: 25
Weight g: 31
Temperature °C: 60
Surface: weiß
A57A-KwM5NEU57 107,6 14,5M5200688280weiß Download CAD file

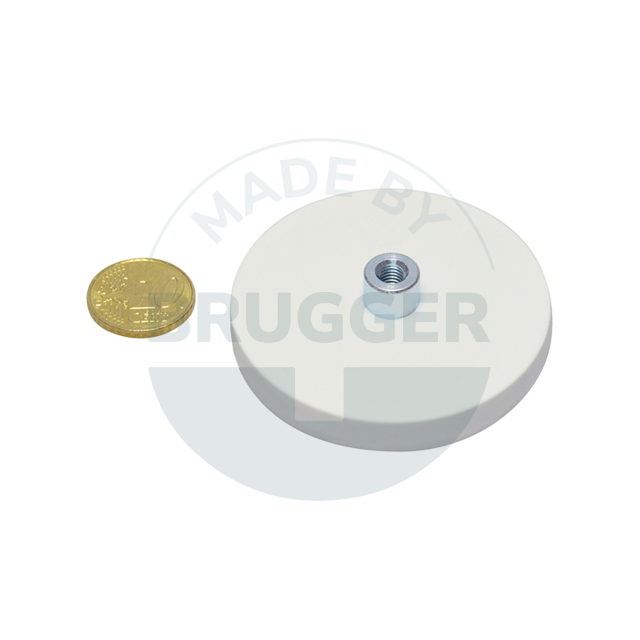

Rubberised magnet with threaded bush 57mm M5 | © Brugger GmbH

Magnetsystem ø 57 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: A57A-KwM5NEU
D mm: 57
d mm: 10
H mm: 7,6
HGes mm: 14,5
Thread M: M5
Adhesive force* N: 200
Shear force* N: 68
Weight g: 82
Temperature °C: 80
Surface: weiß
A66A-KwM5NEU66 108,5 15M52507510580weiß Download CAD file

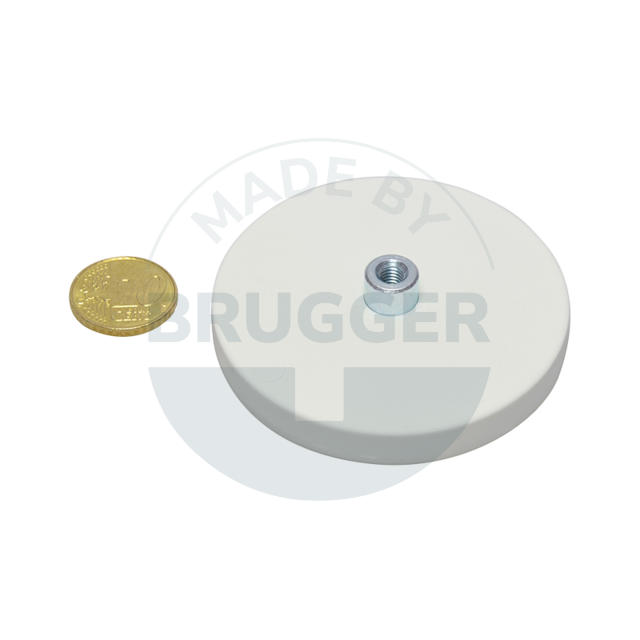

Rubberised magnet with threaded bush 66mm M5 | © Brugger GmbH

Magnetsystem ø 66 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: A66A-KwM5NEU
D mm: 66
d mm: 10
H mm: 8,5
HGes mm: 15
Thread M: M5
Adhesive force* N: 250
Shear force* N: 75
Weight g: 105
Temperature °C: 80
Surface: weiß
A88A-KwM8NEU88 128,5 17M855012519280weiß Download CAD file

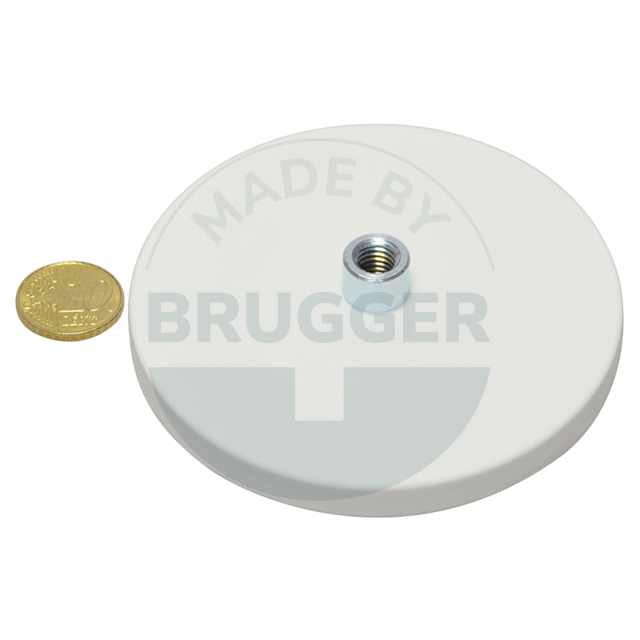

Rubberised magnet with threaded bush 88mm M8 | © Brugger GmbH

Magnetsystem ø 88 mm aus NdFeB, Gummimantel weiß, mit Gewindebuchse

Article number: A88A-KwM8NEU
D mm: 88
d mm: 12
H mm: 8,5
HGes mm: 17
Thread M: M8
Adhesive force* N: 550
Shear force* N: 125
Weight g: 192
Temperature °C: 80
Surface: weiß
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
