Magnetic catches

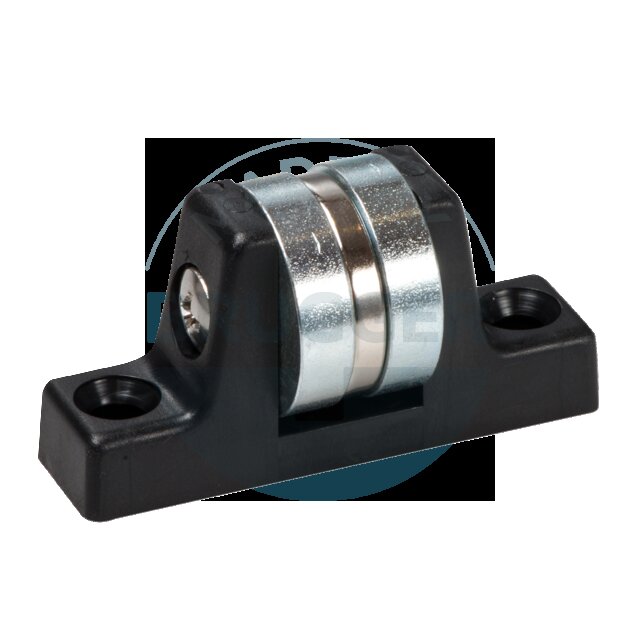

Magnetic door stop with round pole faces and holding angle of over 280°.

Universal magnetic door stop for robust applications in industry, offices or cold rooms. Thanks to the round adhesive surface, ferromagnetic objects adhere to it at an angle of 280°.

Simple mounting by screwing to the back of a door or to the wall. A counter plate is not required when steel doors are used.

Data sheet
Product variants
Article numberL mmB mmd1 mmd2 mmb mmW mml mmAdhesive force* NWeight gTemperature °C
MTS60x32x25-Nd602595.515.546.5161507160 Download CAD file
Article number: MTS60x32x25-Nd
L mm: 60
B mm: 25
d1 mm: 9
d2 mm: 5.5
b mm: 15.5
W mm: 46.5
l mm: 16
Adhesive force* N: 150
Weight g: 71
Temperature °C: 60
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
