Raw magnets of Aluminum-nickel-cobalt (AlNiCo)

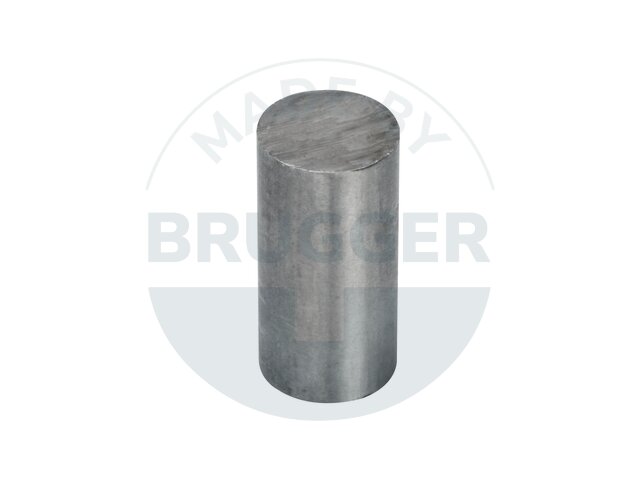

Rod magnet made of AlNiCo

Name: Rod magnet made of AlNiCo
Brand: BRUGGER GmbH Magnetsysteme
Availability: InStock

PRODUCT NOTE:
Moulds are often required for the production of AlNiCo magnets. Therefore, not every desired dimension is possible. Simple moulds and small quantities can be cut from blocks or bars if necessary. The surface is polished and bright. The temperature specification refers to the maximum operating temperature of the material. Due to
This resistance may be reduced due to the geometry.

As an alternative to the standard, we also offer customised solutions:
" customised dimensions
" other qualities

Data sheet

Article number

Quality

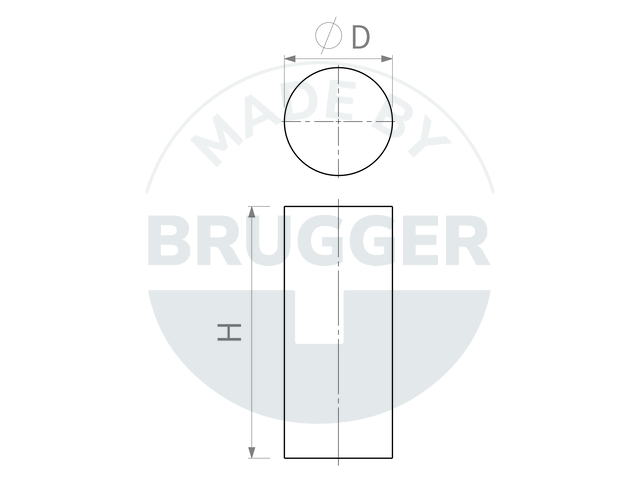

D mm

H mm

Adhesive force* N

Weight g

Temperature °C

Magnetisation

MAASm10x20

ANC5

10 ⁰/_-0.2

20 ^+0.1/_-0.1

450

axial

MAASm10x40

ANC5

10 ⁰/_-0.2

40 ^+0.1/_-0.1

450

axial

MAASm12x40

ANC5

12 ⁰/_-0.2

40 ^+0.1/_-0.1

450

axial

MAASm15x30

ANC5

15 ⁰/_-0.2

30 ^+0.1/_-0.1

450

axial

MAASm15x60

ANC5

15 ⁰/_-0.2

60 ^+0.2/_-0.2

450

axial

MAASm20x80

ANC5

20 ⁰/_-0.2

80 ^+0.2/_-0.2

182

450

axial

MAASm34x80

ANC5

34 ⁰/_-0.2

80 ^+0.2/_-0.2

527

450

axial

MAASm3x10

ANC5

3 ⁰/_-0.2

10 ^+0.1/_-0.1

1.1

0.6

450

axial

MAASm3x12

ANC5

3 ⁰/_-0.2

12 ^+0.1/_-0.1

1.3

0.6

450

axial

MAASm4x16

ANC5

4 ⁰/_-0.2

16 ^+0.1/_-0.1

1.9

1.4

450

axial

MAASm4x20

ANC5

4 ⁰/_-0.2

20 ^+0.1/_-0.1

1.7

450

axial

MAASm5x20

ANC5

5 ⁰/_-0.2

20 ^+0.1/_-0.1

2.3

2.6

450

axial

MAASm6x15

ANC5

6 ⁰/_-0.2

15 ^+0.1/_-0.1

2.8

450

axial

MAASm6x24

ANC5

6 ⁰/_-0.2

24 ^+0.1/_-0.1

2.8

450

axial

MAASm6x30

ANC5

6 ⁰/_-0.2

30 ^+0.1/_-0.1

2.8

450

axial

MAASm8x25

ANC5

8 ⁰/_-0.2

25 ^+0.1/_-0.1

3.8

450

axial

Magnetised by the height (H)
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
