Bar magnets of Neodymium-iron-boron (NdFeB)

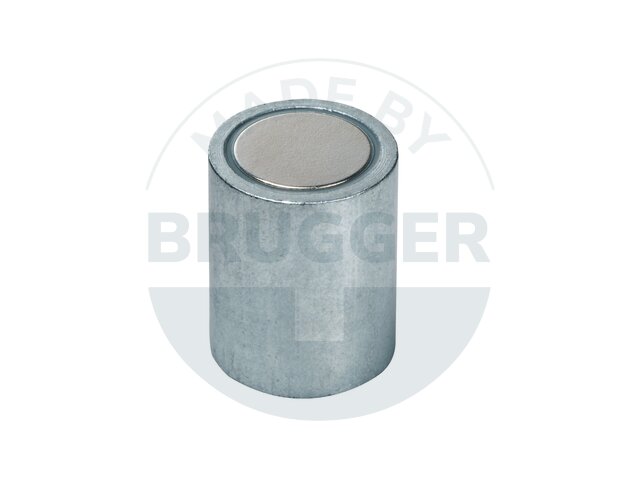

Bar magnet of NdFeB, steel body, zinc coated

Unsere Stabgreifer sind Magnetsysteme mit einem zylindrischen Gehäuse und überzeugen mit ihrer hohen Haftkraft. Sie sind die perfekte Lösung für den Maschinen-, Werkzeug- und Vorrichtungsbau sowie für viele andere Branchen. Mit ihnen halten, spannen, transportieren und heben Sie eisenhaltige Werkstücke sicher und zuverlässig.

Data sheet
Product variants
Article numberD mmH mmA¹ mmAdhesive force* NWeight gTemperature °C
S4Nd4 +0.1/-0.120 +0.2/-0.2152.5280 Download CAD file
Bar grips of NdFeB steel housing galvanised 4mm | © Brugger GmbH
Article number: S4Nd
:
:
D mm: 4 +0.1/-0.1
H mm: 20 +0.2/-0.2
A¹ mm: 15
Adhesive force* N: 2.5
Weight g: 2
Temperature °C: 80
S5Nd5 +0.1/-0.120 +0.2/-0.2154.5380 Download CAD file
Bar grips of NdFeB steel housing galvanised 5mm | © Brugger GmbH
Article number: S5Nd
:
:
D mm: 5 +0.1/-0.1
H mm: 20 +0.2/-0.2
A¹ mm: 15
Adhesive force* N: 4.5
Weight g: 3
Temperature °C: 80
S6Nd6 +0.1/-0.120 +0.2/-0.21564.580 Download CAD file
Bar grips of NdFeB steel housing galvanised 6mm | © Brugger GmbH
Article number: S6Nd
:
:
D mm: 6 +0.1/-0.1
H mm: 20 +0.2/-0.2
A¹ mm: 15
Adhesive force* N: 6
Weight g: 4.5
Temperature °C: 80
S8Nd8 +0.1/-0.120 +0.2/-0.21512880 Download CAD file
Bar grips of NdFeB steel housing galvanised 8mm | © Brugger GmbH
Article number: S8Nd
:
:
D mm: 8 +0.1/-0.1
H mm: 20 +0.2/-0.2
A¹ mm: 15
Adhesive force* N: 12
Weight g: 8
Temperature °C: 80
S10Nd10 +0.1/-0.120 +0.2/-0.215241280 Download CAD file
Bar grips of NdFeB steel housing galvanised 10mm | © Brugger GmbH
Article number: S10Nd
:
:
D mm: 10 +0.1/-0.1
H mm: 20 +0.2/-0.2
A¹ mm: 15
Adhesive force* N: 24
Weight g: 12
Temperature °C: 80
S13Nd13 +0.1/-0.120 +0.2/-0.215602180 Download CAD file
Bar grips of NdFeB steel housing galvanised 13mm | © Brugger GmbH
Article number: S13Nd
:
:
D mm: 13 +0.1/-0.1
H mm: 20 +0.2/-0.2
A¹ mm: 15
Adhesive force* N: 60
Weight g: 21
Temperature °C: 80
S16Nd16 +0.1/-0.120 +0.2/-0.215903180 Download CAD file
Article number: S16Nd
:
:
D mm: 16 +0.1/-0.1
H mm: 20 +0.2/-0.2
A¹ mm: 15
Adhesive force* N: 90
Weight g: 31
Temperature °C: 80
S20Nd20 +0.1/-0.125 +0.2/-0.2181356180 Download CAD file
Bar grips of NdFeB steel housing galvanised 20mm | © Brugger GmbH
Article number: S20Nd
:
:
D mm: 20 +0.1/-0.1
H mm: 25 +0.2/-0.2
A¹ mm: 18
Adhesive force* N: 135
Weight g: 61
Temperature °C: 80
S25Nd25 +0.1/-0.135 +0.2/-0.22719013380 Download CAD file
Bar grips of NdFeB steel housing galvanised 25mm | © Brugger GmbH
Article number: S25Nd
:
:
D mm: 25 +0.1/-0.1
H mm: 35 +0.2/-0.2
A¹ mm: 27
Adhesive force* N: 190
Weight g: 133
Temperature °C: 80
S32Nd32 +0.1/-0.140 +0.2/-0.23234024980 Download CAD file
Bar grips of NdFeB steel housing galvanised 32mm | © Brugger GmbH
Article number: S32Nd
:
:
D mm: 32 +0.1/-0.1
H mm: 40 +0.2/-0.2
A¹ mm: 32
Adhesive force* N: 340
Weight g: 249
Temperature °C: 80
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
