Rubber coated systems

Magnet assembly of hard ferrite or NdFeB, rubber coat black, rectangular

© Brugger GmbH
© Brugger GmbH
© Brugger GmbH
© Brugger GmbH
© Brugger GmbH
© Brugger GmbH

PRODUCT INFORMATION:
These systems with an improved protection against corrosion are used especially on delicate surfaces and have a very high adhesive force at large distances from the counterpart. The extremely soft rubber coating leads to higher displacement forces. Thanks to the large pole gap these systemes have a high adherence even on rounded surfaces (such as wind towers).

Alternative to the standard we also offer individual solutions:
» Other colours of the rubber coating
» Harder rubber coating
» Printed rubber coating according to your specifications
» Other mounting options (such as external thread)
» Higher adhesive force

Data sheet
Product variants
Article numberL mmB mmH mmAdhesive force* NShear force* NWeight gTemp. °C
AS070HFC-00s-00NEU70 50 13 4520125120 Download CAD file
Rubberised magnet systems rectangular black | © Brugger GmbH

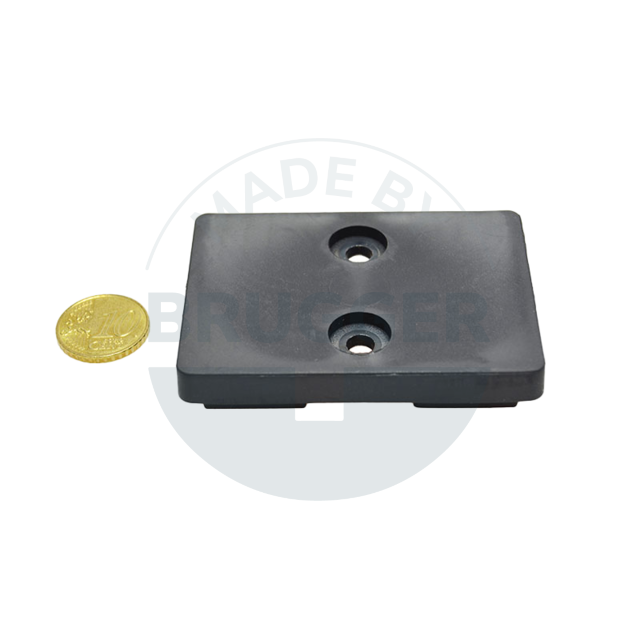

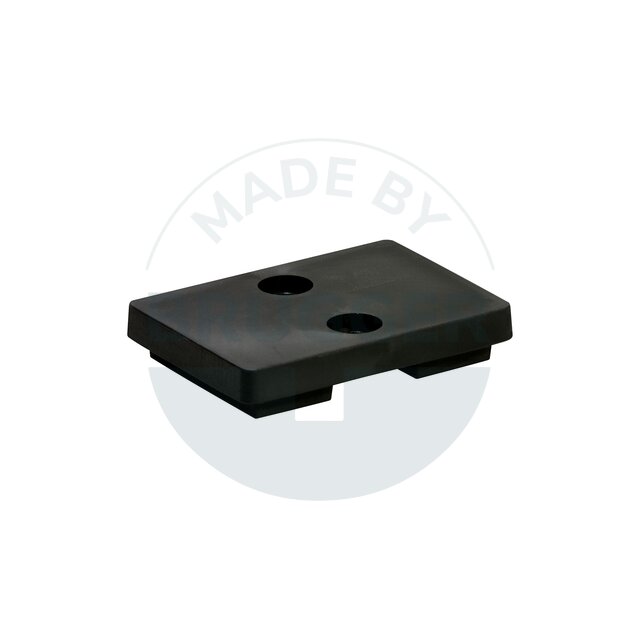

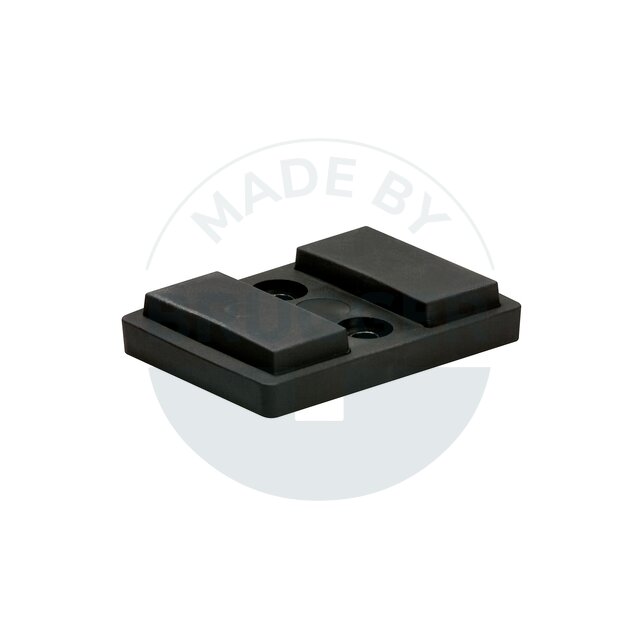

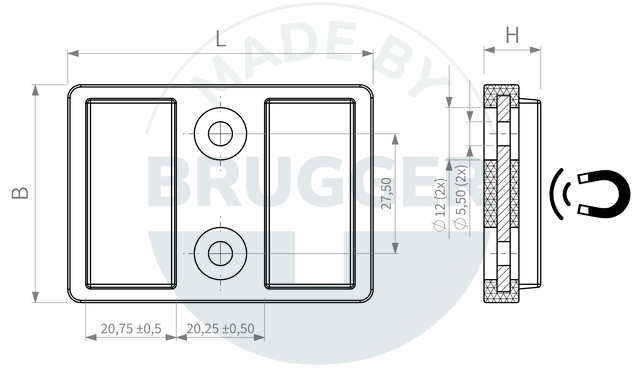

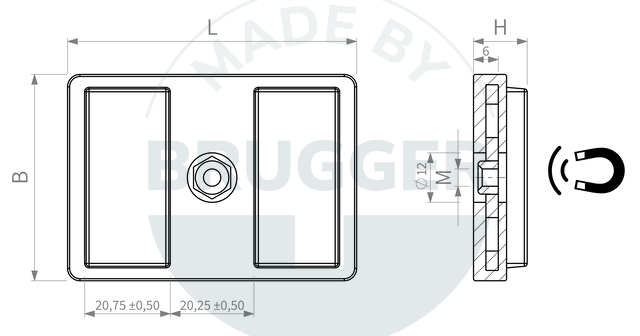

Magnetsystem 70x50x13mm aus Hartferrit, Gummimantel schwarz, rechteckig, mit 2x Bohrung

Article number: AS070HFC-00s-00NEU
L mm: 70
B mm: 50
H mm: 13
Adhesive force* N: 45
Shear force* N: 20
Weight g: 125
Temp. °C: 120
AS070HFD-05s-00NEU70 50 13 4520125120 Download CAD file
Rubberised magnet systems rectangular black | © Brugger GmbH

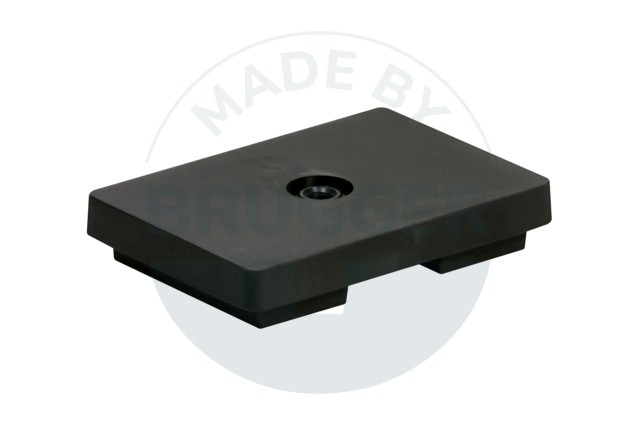

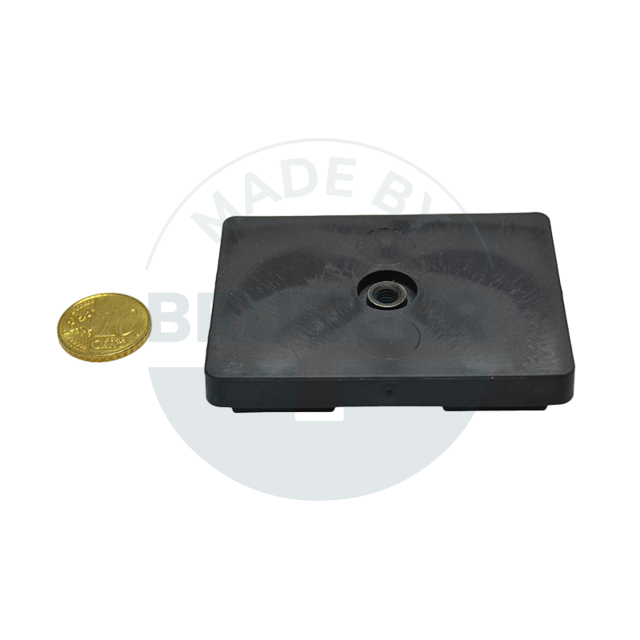

Magnetsystem 70x50x13mm aus Hartferrit, Gummimantel schwarz, rechteckig, mit Innengewinde

Article number: AS070HFD-05s-00NEU
L mm: 70
B mm: 50
H mm: 13
Adhesive force* N: 45
Shear force* N: 20
Weight g: 125
Temp. °C: 120
AS070HFD-05s-01NEU70 50 13 4520125120 Download CAD file
Rubberised magnet systems rectangular black | © Brugger GmbH

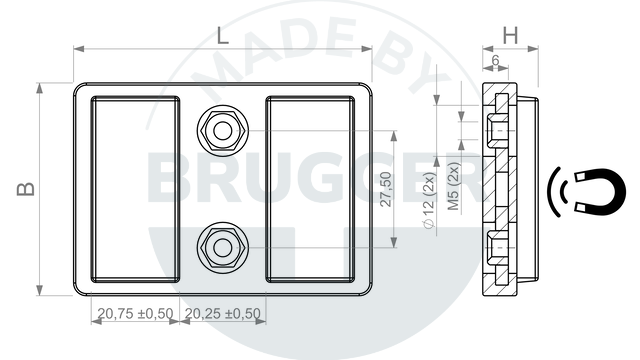

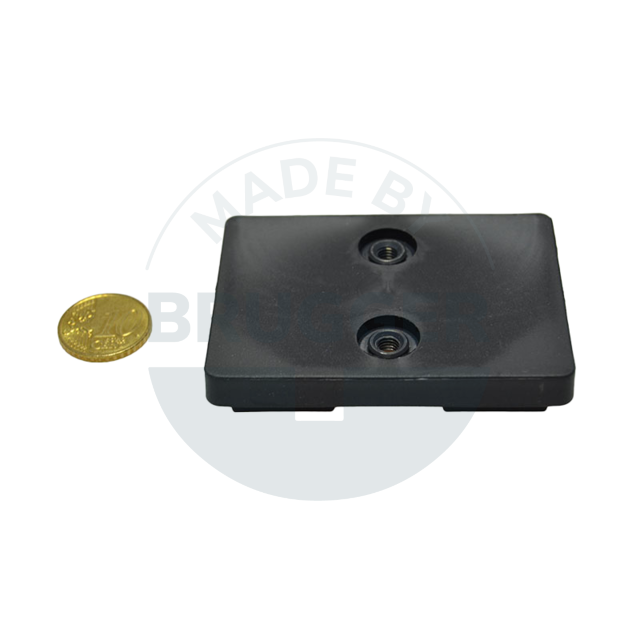

Magnetsystem 70x50x13mm aus Hartferrit, Gummimantel schwarz, rechteckig, mit 2x Innengewinde

Article number: AS070HFD-05s-01NEU
L mm: 70
B mm: 50
H mm: 13
Adhesive force* N: 45
Shear force* N: 20
Weight g: 125
Temp. °C: 120
AS070NdC-00s-00NEU70 50 13 2909014980 Download CAD file
Rubberised magnet systems rectangular black | © Brugger GmbH

Magnetsystem70x50x13mm aus Neodym, Gummimantel schwarz, rechteckig, mit 2x Bohrung

Article number: AS070NdC-00s-00NEU
L mm: 70
B mm: 50
H mm: 13
Adhesive force* N: 290
Shear force* N: 90
Weight g: 149
Temp. °C: 80
AS070NdD-05s-00NEU70 50 13 2909014980 Download CAD file
Rubberised magnet systems rectangular black | © Brugger GmbH

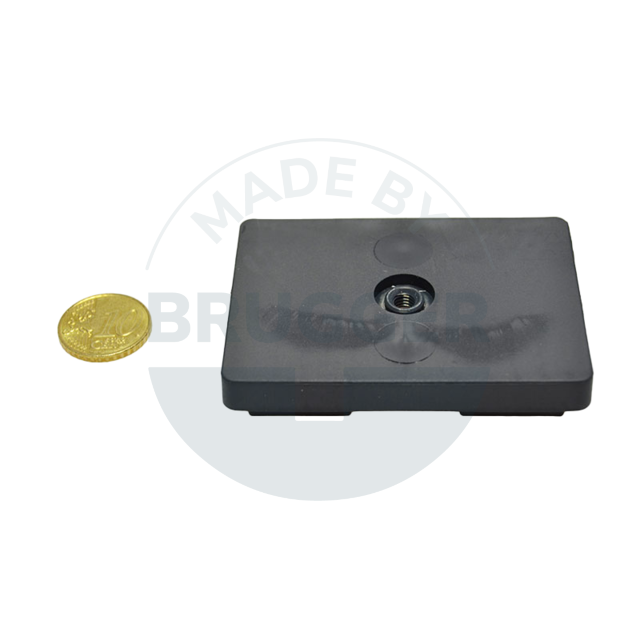

Magnetsystem 70x50x13mm aus Neodym, Gummimantel schwarz, rechteckig, mit Innengewinde

Article number: AS070NdD-05s-00NEU
L mm: 70
B mm: 50
H mm: 13
Adhesive force* N: 290
Shear force* N: 90
Weight g: 149
Temp. °C: 80
AS070NdD-05s-01NEU70 50 13 2909014980 Download CAD file
Rubberised magnet systems rectangular black | © Brugger GmbH

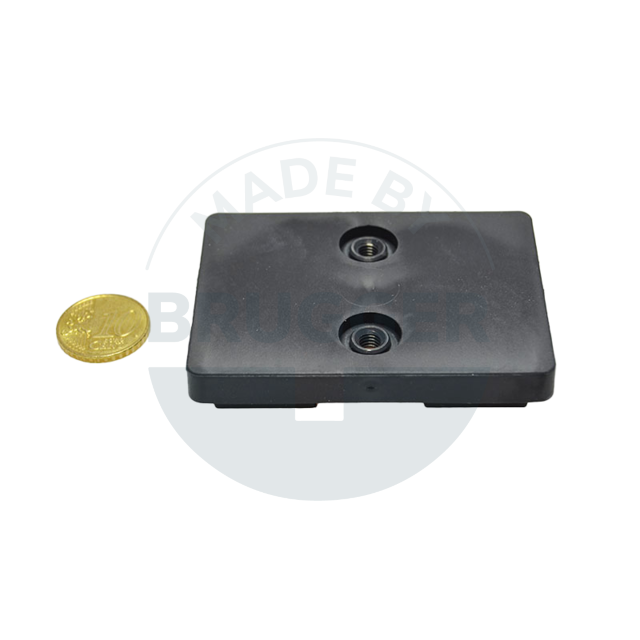

Magnetsystem 70x50x13mm aus Neodym, Gummimantel schwarz, rechteckig, mit 2x Innengewinde

Article number: AS070NdD-05s-01NEU
L mm: 70
B mm: 50
H mm: 13
Adhesive force* N: 290
Shear force* N: 90
Weight g: 149
Temp. °C: 80
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
