Magnetic catches

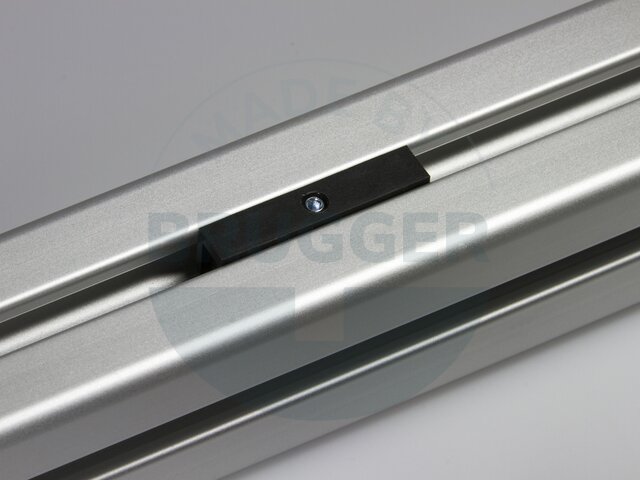

Magnet assembly to be clipped into aluminium profiles

APPLICATION:
Mounting rail magnets offer an easy fixing for doors, covers, metal housings, tools and accessories ( for example at assembly workstations). Due to an easy mounting and the possibility of a fast dismantling these magnets are also useful with fair constructions.

PRODUCT INFORMATION:

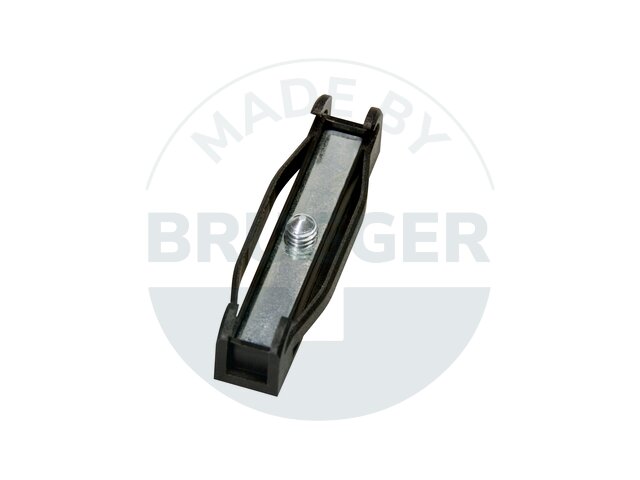

The magnet assembly can be clipped into the groove. It is freely movable or can be fixed by a threaded pin. The magnetic core is protected by a plastic cover and has a large magnet area in the groove. The magnetic system is lying nearly plan and has a closed, smooth adhesive surface which avoids scratches on the surface and the concentration of metal shavings.

Alternative to the standard we also offer individual solutions:
» Plastic housing in special colours
» Temperature resistance up to 150°C



Data sheet
Product variants

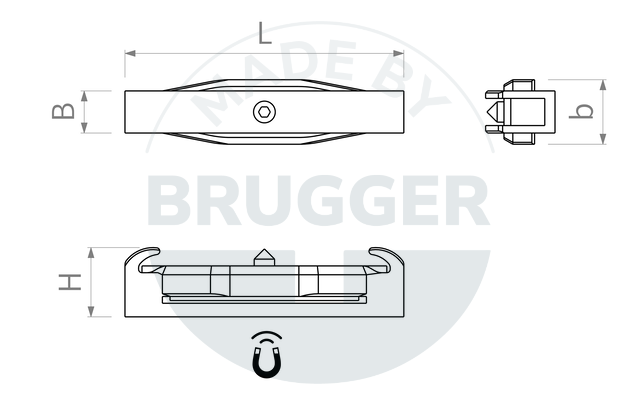

Article numberL mmB mmH mmpassend für Profileb mmAdhesive force* NWeight gTemperature °C
MS041NdRe03K-00NEU41610.230x30 Nut 69.5104.580 Download CAD file
Magnetic fitting for clipping into aluminium profiles | © Brugger GmbH
Article number: MS041NdRe03K-00NEU
L mm: 41
B mm: 6
H mm: 10.2
passend für Profile: 30x30 Nut 6
b mm: 9.5
Adhesive force* N: 10
Weight g: 4.5
Temperature °C: 80
MS041NdRe03K-03NEU41610.230x30 Nut 69.5189120 Download CAD file
Magnetic fitting for clipping into aluminium profiles | © Brugger GmbH

Magnetsysteme zum Einclipsen passend für Alu-Profil 30x30 Nut 6

Article number: MS041NdRe03K-03NEU
L mm: 41
B mm: 6
H mm: 10.2
passend für Profile: 30x30 Nut 6
b mm: 9.5
Adhesive force* N: 18
Weight g: 9
Temperature °C: 120
MS041NdRe04K-00NEU4189.330x30 Nut 811.618680 Download CAD file
Magnetic fitting for clipping into aluminium profiles | © Brugger GmbH
Article number: MS041NdRe04K-00NEU
L mm: 41
B mm: 8
H mm: 9.3
passend für Profile: 30x30 Nut 8
b mm: 11.6
Adhesive force* N: 18
Weight g: 6
Temperature °C: 80
MS041NdRe04K-01NEU411013.245x45 Nut 1013.7187.580 Download CAD file
Magnetic fitting for clipping into aluminium profiles | © Brugger GmbH
Article number: MS041NdRe04K-01NEU
L mm: 41
B mm: 10
H mm: 13.2
passend für Profile: 45x45 Nut 10
b mm: 13.7
Adhesive force* N: 18
Weight g: 7.5
Temperature °C: 80
MS041NdRe04K-02NEU41812.940x40 Nut 812.518780 Download CAD file
Magnetic fitting for clipping into aluminium profiles | © Brugger GmbH
Article number: MS041NdRe04K-02NEU
L mm: 41
B mm: 8
H mm: 12.9
passend für Profile: 40x40 Nut 8
b mm: 12.5
Adhesive force* N: 18
Weight g: 7
Temperature °C: 80

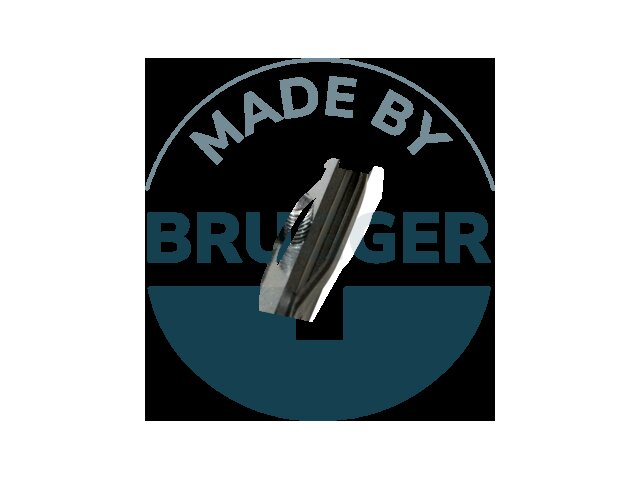

MS041NdRe04K-07NEU4189.330x30 Nut 811.63010.5120 Download CAD file

Magnetsysteme zum Einclipsen passend für Alu-Profil 30x30 Nut 8

Article number: MS041NdRe04K-07NEU
L mm: 41
B mm: 8
H mm: 9.3
passend für Profile: 30x30 Nut 8
b mm: 11.6
Adhesive force* N: 30
Weight g: 10.5
Temperature °C: 120
MS041NdRe04K-08NEU411013.245x45 Nut 1013.73012120 Download CAD file
Magnetic fitting for clipping into aluminium profiles | © Brugger GmbH

Magnetsysteme zum Einclipsen passend für Alu-Profil 45x45 Nut 10

Article number: MS041NdRe04K-08NEU
L mm: 41
B mm: 10
H mm: 13.2
passend für Profile: 45x45 Nut 10
b mm: 13.7
Adhesive force* N: 30
Weight g: 12
Temperature °C: 120

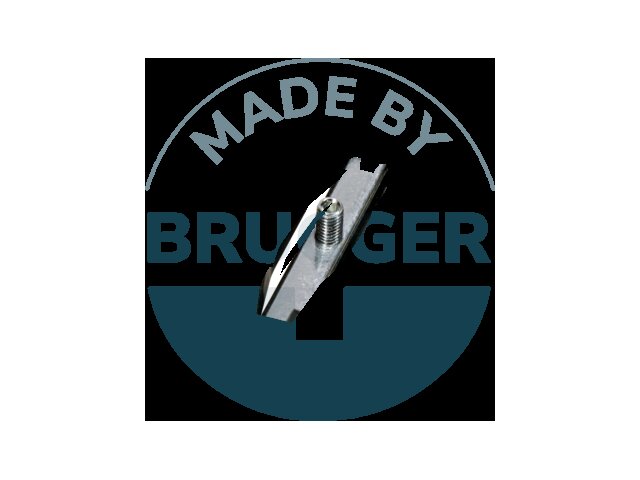

MS041NdRe04K-09NEU41812.940x40 Nut 812.53011.5120 Download CAD file

Magnetsysteme zum Einclipsen passend für Alu-Profil 40x40 Nut 8

Article number: MS041NdRe04K-09NEU
L mm: 41
B mm: 8
H mm: 12.9
passend für Profile: 40x40 Nut 8
b mm: 12.5
Adhesive force* N: 30
Weight g: 11.5
Temperature °C: 120
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
