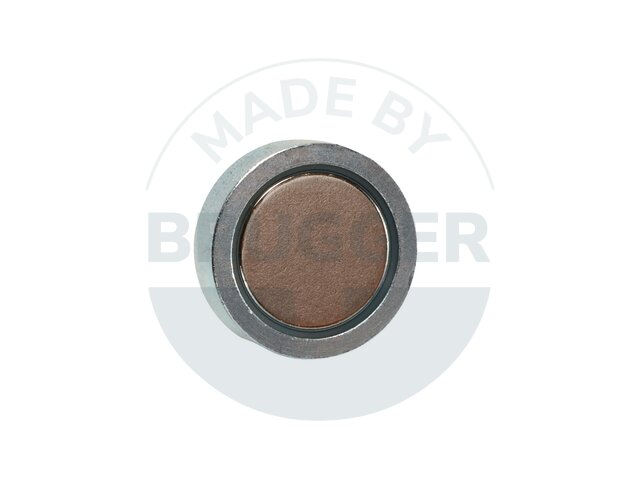

Flat pot magnets of NdFeB, steel body, with external thread, galvanized
Flat pot magnets of Neodymium-iron-boron (NdFeB)
Flat pot magnets of NdFeB, steel body, with external thread, galvanized
Alternative to the standard we also offer individual solutions: » Corrosion protection with black galvanised housing surfaces (up to 720 hours in a salt spray test - depending on the magnet material)
Article number
D mm
H mm
Thread MxL
Force* N
Weight g
Temperature °C
F6-NdAGvM3x7
6+0.1/-0.1
4.5+0.1/-0.1
M3x7
5
1.3
80
F8-NdAGvM4x8
8+0.1/-0.1
4.5+0.1/-0.1
M4x8
13
2.3
80
F10-NdAGvM3x7
10+0.1/-0.1
4.5+0.1/-0.1
M3x7
25
2.5
80
F10-NdAGvM4x8
10+0.1/-0.1
4.5+0.1/-0.1
M4x8
25
3
80
F13-NdAGvM5x8
13+0.1/-0.1
4.5+0.1/-0.1
M5x8
60
5
80
FG016NdAG04v-08 ¹
16+0.1/-0.1
4.5+0.2/-0.1
M4x7
85
7
80
F16-NdAGvM6x8
16+0.1/-0.1
4.5+0.1/-0.1
M6x8
95
8
80
new
FG020NdAG05v-04 ¹
20+0.2/-0.2
6+0.2/-0.1
M5x8
155
15
80
F20-NdAGvM6x10
20+0.1/-0.1
6+0.1/-0.1
M6x10
140
15
80
F25-NdAGvM6x10
25+0.1/-0.1
7+0.2/-0.2
M6x10
200
27
80
F32-NdAGvM6x10
32+0.1/-0.1
7+0.2/-0.2
M6x10
350
42
80
F40-NdAGvM8x12
40+0.1/-0.1
8+0.2/-0.2
M8x12
670
80
80
FG047NdAG08v-01 ¹
47+0.2/-0.1
9.2+0.2/-0.3
M8x13
790
107
80
¹ Housing punched from strip steel, rear chamfer with radius
* The forces have been determined at room temperature on a plate in polished steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg ~ 10N). A maximum deviation of -10% compared to the specified value is possible in exceptional cases. Value is exceeded in general. Depending on the type of application (installation situation, temperatures, counter anchor etc.) the forces can be influenced enormously. The indicated values are serving as an orientation. Please get advice and help from our experts.
