Magnetic catches

Magnetic catches lockable

Systems for plugging into a groove that keep using locking lug without additional fastening.

The optimum plate thickness of the installation space is as follows:
MBS56x12x12        2.50 mm
MBS64x10x10        1.00 mm

Data sheet
Product variants
Article numberL mmB mmH mmt mmb mmh mml mmAdhesive force* NWeight gTemperature °C
MBS56x12x12561212.22.21152852460 Download CAD file

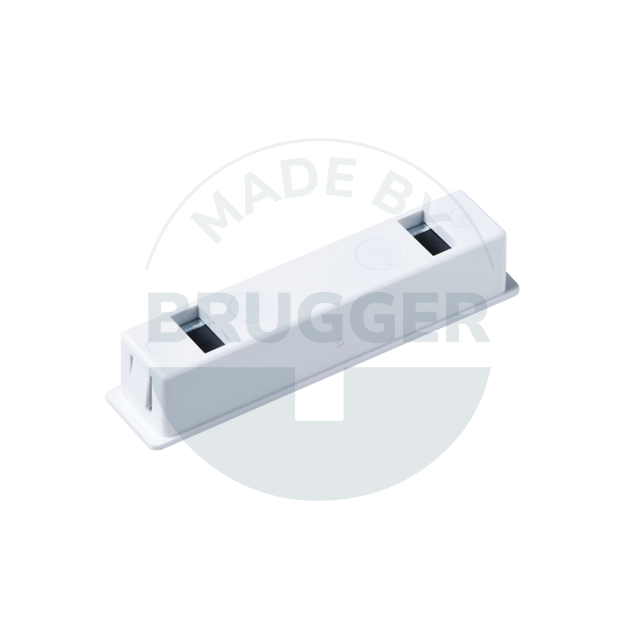

Clip-in magnet system 56x12x12 | © Brugger GmbH
Article number: MBS56x12x12
L mm: 56
B mm: 12
H mm: 12.2
t mm: 2.2
b mm: 11
l mm: 52
Adhesive force* N: 85
Weight g: 24
Temperature °C: 60
MBS64x10x14649.814.30.72541003590 Download CAD file

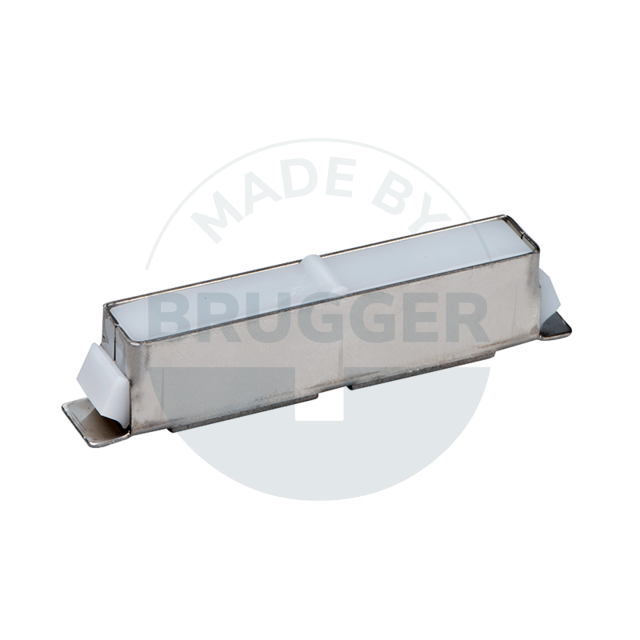

Clip-in magnet system 64x10x14 | © Brugger GmbH
Article number: MBS64x10x14
L mm: 64
B mm: 9.8
H mm: 14.3
t mm: 0.7
h mm: 2
l mm: 54
Adhesive force* N: 100
Weight g: 35
Temperature °C: 90

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
