Alternative to the standard we also offer individual solutions: » Other colours possible
Article number
L mm
l mm
B mm
H mm
d mm
d1 mm
d2 mm
t mm
Force* N
Weight g
Temperature °C

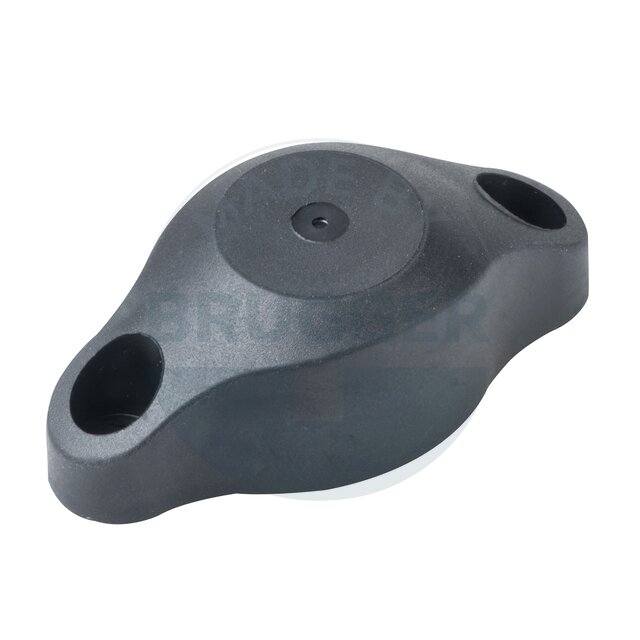

MBS65x30x23Nd
65
50
30
23
22
5
10
3.5
60
22
60
* The forces have been determined at room temperature on a plate in polished steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg ~ 10N). A maximum deviation of -10% compared to the specified value is possible in exceptional cases. Value is exceeded in general. Depending on the type of application (installation situation, temperatures, counter anchor etc.) the forces can be influenced enormously. The indicated values are serving as an orientation. Please get advice and help from our experts.
