Bar magnets of Aluminum-nickel-cobalt (AlNiCo)

Deep pot magnet made of AlNiCo, steel housing, with internal thread, galvanised

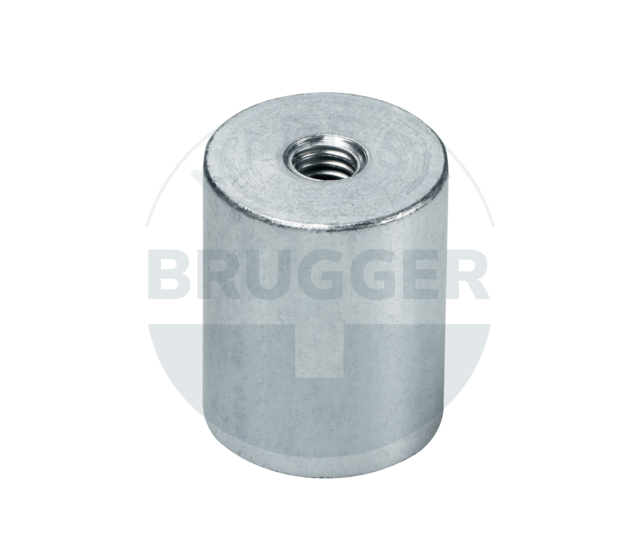

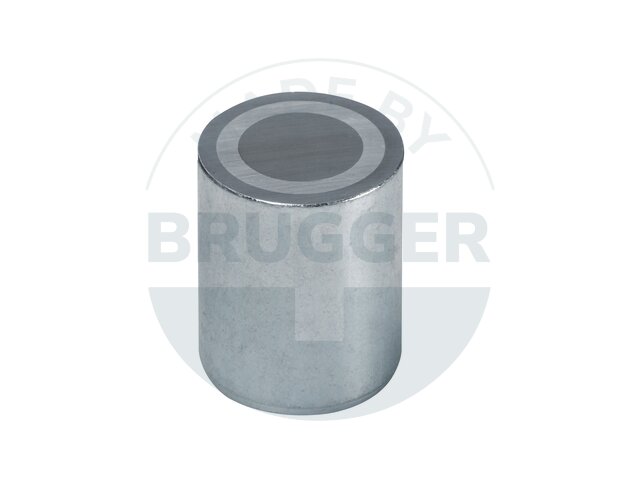

Our deep pot magnets are magnet systems with a cylindrical housing and impress with their high holding force. They are the perfect solution for machine, tool and fixture construction as well as for many other industries. They hold, clamp, transport and lift ferrous workpieces safely and reliably.

Data sheet

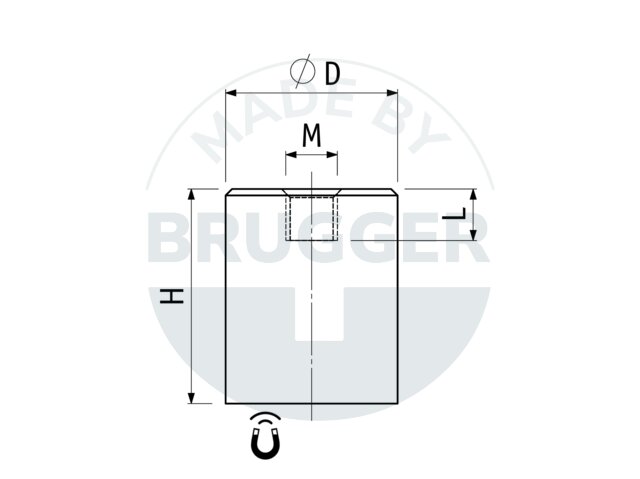

Article numberD mmH mmThread MxLAdhesive force* NWeight gTemperature °C
S6GNEU6 +0.1/-0.120 +0.2/-0.2M3x524450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 6mm | © Brugger GmbH
Article number: S6GNEU
D mm: 6 +0.1/-0.1
H mm: 20 +0.2/-0.2
Thread MxL: M3x5
Adhesive force* N: 2
Weight g: 4
Temperature °C: 450
S12.512.5 +0.1/-0.116 +0.2/-0.2M4x62015350 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 12.5mm | © Brugger GmbH
Article number: S12.5
D mm: 12.5 +0.1/-0.1
H mm: 16 +0.2/-0.2
Thread MxL: M4x6
Adhesive force* N: 20
Weight g: 15
Temperature °C: 350
S8GNEU8 +0.1/-0.120 +0.2/-0.2M3x547.5450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 8mm | © Brugger GmbH
Article number: S8GNEU
D mm: 8 +0.1/-0.1
H mm: 20 +0.2/-0.2
Thread MxL: M3x5
Adhesive force* N: 4
Weight g: 7.5
Temperature °C: 450
S10GNEU10 +0.1/-0.120 +0.2/-0.2M4x78.511450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 10mm | © Brugger GmbH
Article number: S10GNEU
D mm: 10 +0.1/-0.1
H mm: 20 +0.2/-0.2
Thread MxL: M4x7
Adhesive force* N: 8.5
Weight g: 11
Temperature °C: 450
S1717 +0.2/-0.216 +0.2/-0.2M6x52629350 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 17mm | © Brugger GmbH
Article number: S17
D mm: 17 +0.2/-0.2
H mm: 16 +0.2/-0.2
Thread MxL: M6x5
Adhesive force* N: 26
Weight g: 29
Temperature °C: 350
S13GNEU13 +0.1/-0.120 +0.2/-0.2M4x71219450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 13mm | © Brugger GmbH
Article number: S13GNEU
D mm: 13 +0.1/-0.1
H mm: 20 +0.2/-0.2
Thread MxL: M4x7
Adhesive force* N: 12
Weight g: 19
Temperature °C: 450
S16GNEU16 +0.1/-0.120 +0.2/-0.2M4x52030450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 16mm | © Brugger GmbH
Article number: S16GNEU
D mm: 16 +0.1/-0.1
H mm: 20 +0.2/-0.2
Thread MxL: M4x5
Adhesive force* N: 20
Weight g: 30
Temperature °C: 450
S20GNEU20 +0.1/-0.125 +0.2/-0.2M6x74055450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 20mm | © Brugger GmbH
Article number: S20GNEU
D mm: 20 +0.1/-0.1
H mm: 25 +0.2/-0.2
Thread MxL: M6x7
Adhesive force* N: 40
Weight g: 55
Temperature °C: 450
S2121 +0.1/-0.119 +0.2/-0.2M6x74050350 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 21mm | © Brugger GmbH
Article number: S21
D mm: 21 +0.1/-0.1
H mm: 19 +0.2/-0.2
Thread MxL: M6x7
Adhesive force* N: 40
Weight g: 50
Temperature °C: 350
S2727 +0.1/-0.125 +0.2/-0.2M6x86598350 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 27mm | © Brugger GmbH
Article number: S27
D mm: 27 +0.1/-0.1
H mm: 25 +0.2/-0.2
Thread MxL: M6x8
Adhesive force* N: 65
Weight g: 98
Temperature °C: 350
S25GNEU25 +0.1/-0.135 +0.2/-0.2M6x960121450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanisedn 25mm | © Brugger GmbH
Article number: S25GNEU
D mm: 25 +0.1/-0.1
H mm: 35 +0.2/-0.2
Thread MxL: M6x9
Adhesive force* N: 60
Weight g: 121
Temperature °C: 450
S32GNEU32 +0.1/-0.140 +0.2/-0.2M8x9160220450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 32mm | © Brugger GmbH
Article number: S32GNEU
D mm: 32 +0.1/-0.1
H mm: 40 +0.2/-0.2
Thread MxL: M8x9
Adhesive force* N: 160
Weight g: 220
Temperature °C: 450
S40GNEU40 +0.2/-0.150 +0.2/-0.2M8x12240436450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 40mm | © Brugger GmbH
Article number: S40GNEU
D mm: 40 +0.2/-0.1
H mm: 50 +0.2/-0.2
Thread MxL: M8x12
Adhesive force* N: 240
Weight g: 436
Temperature °C: 450
S3535 +0.1/-0.130 +0.2/-0.2M6x9150205350 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 35mm | © Brugger GmbH
Article number: S35
D mm: 35 +0.1/-0.1
H mm: 30 +0.2/-0.2
Thread MxL: M6x9
Adhesive force* N: 150
Weight g: 205
Temperature °C: 350
S50GNEU50 +0.3/-0.160 +0.2/-0.2M10x12400794450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 50mm | © Brugger GmbH
Article number: S50GNEU
D mm: 50 +0.3/-0.1
H mm: 60 +0.2/-0.2
Thread MxL: M10x12
Adhesive force* N: 400
Weight g: 794
Temperature °C: 450
S63GNEU63 +0.3/-0.165 +0.2/-0.2M12x146601,274450 Download CAD file
Bar grips of AlNiCo steel housing with internal thread galvanised 63mm | © Brugger GmbH
Article number: S63GNEU
D mm: 63 +0.3/-0.1
H mm: 65 +0.2/-0.2
Thread MxL: M12x14
Adhesive force* N: 660
Weight g: 1,274
Temperature °C: 450

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
