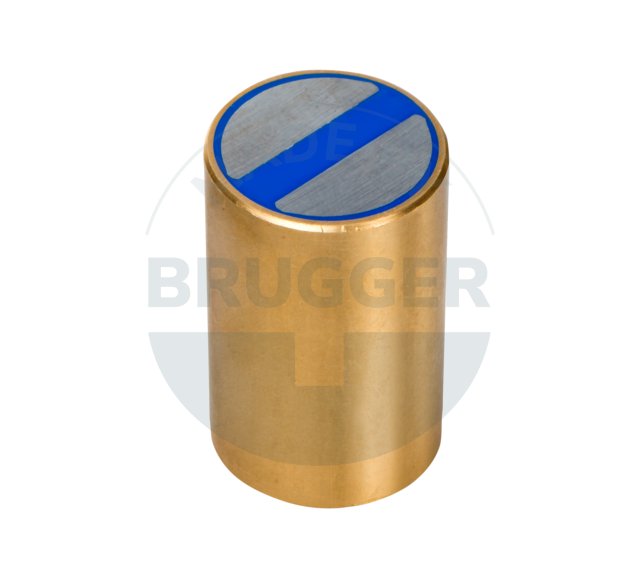

Deep pot magnet made of NdFeB, brass housing, with machinable holding surface and fit tolerance h6

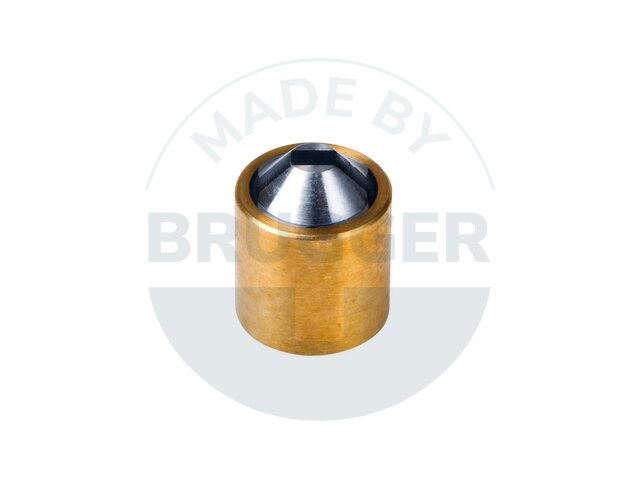

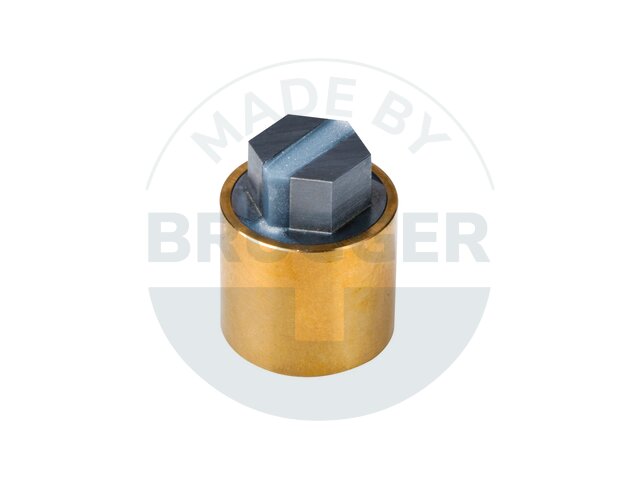

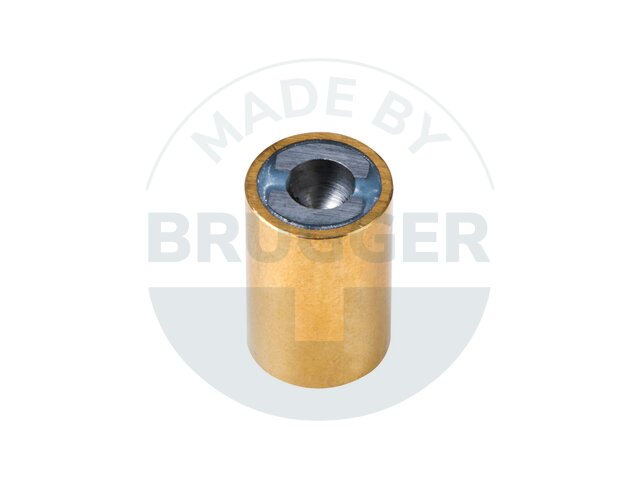

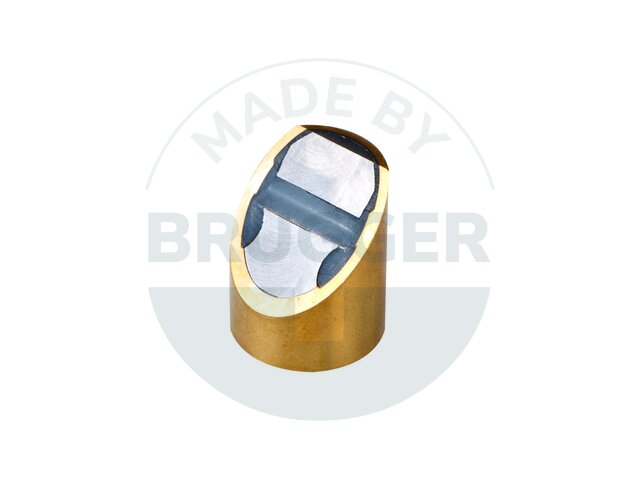

PRODUCT INFORMATION: The deep pot magnets can be machined on both sides. A customised contour is possible on the holding surface. The holding force can also be adjusted. Deep pot magnets with an area for free machining on the holding surface also offer better wear protection compared to other deep pot magnets.
As an alternative to the standard, we also offer customised solutions: " Housing + pole shoes made of stainless steel " Higher holding force " Higher operating temperature up to 280 °C
Stabgreifer ø 6mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG006NdB-00rh02
D mm:
6 (h6)
H mm:
20 +0.2/-0.2
Thread MxL:
-
A¹ mm:
10
B¹ mm:
3
Adhesive force* N:
9
Adhesive force 1* N ²:
12
Weight g:
4
Temperature °C:
150
SG008NdB-00rh02
8 (h6)
20 +0.2/-0.2
-
10
3
22
29
7
150
Stabgreifer ø 8mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG008NdB-00rh02
D mm:
8 (h6)
H mm:
20 +0.2/-0.2
Thread MxL:
-
A¹ mm:
10
B¹ mm:
3
Adhesive force* N:
22
Adhesive force 1* N ²:
29
Weight g:
7
Temperature °C:
150
SG010NdB-00rh04
10 (h6)
20 +0.2/-0.2
-
8
5
27
38
11
150
Stabgreifer ø 10mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG010NdB-00rh04
D mm:
10 (h6)
H mm:
20 +0.2/-0.2
Thread MxL:
-
A¹ mm:
8
B¹ mm:
5
Adhesive force* N:
27
Adhesive force 1* N ²:
38
Weight g:
11
Temperature °C:
150
SG013NdB-00rh03
13 (h6)
20 +0.2/-0.2
-
6
5
49
66
19
150
Stabgreifer ø 13mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG013NdB-00rh03
D mm:
13 (h6)
H mm:
20 +0.2/-0.2
Thread MxL:
-
A¹ mm:
6
B¹ mm:
5
Adhesive force* N:
49
Adhesive force 1* N ²:
66
Weight g:
19
Temperature °C:
150
SG016NdB-00rh03
16 (h6)
20 +0.2/-0.2
-
2
6
94
108
28
150
Stabgreifer ø 16mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG016NdB-00rh03
D mm:
16 (h6)
H mm:
20 +0.2/-0.2
Thread MxL:
-
A¹ mm:
2
B¹ mm:
6
Adhesive force* N:
94
Adhesive force 1* N ²:
108
Weight g:
28
Temperature °C:
150
SG020NdB-00rh04
20 (h6)
25 +0.2/-0.2
-
5
7
173
235
56
150
Stabgreifer ø 20mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG020NdB-00rh04
D mm:
20 (h6)
H mm:
25 +0.2/-0.2
Thread MxL:
-
A¹ mm:
5
B¹ mm:
7
Adhesive force* N:
173
Adhesive force 1* N ²:
235
Weight g:
56
Temperature °C:
150
SG025NdB-00rh05
25 (h6)
35 +0.3/-0.3
-
7
8
292
380
125
150
Stabgreifer ø 25mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG025NdB-00rh05
D mm:
25 (h6)
H mm:
35 +0.3/-0.3
Thread MxL:
-
A¹ mm:
7
B¹ mm:
8
Adhesive force* N:
292
Adhesive force 1* N ²:
380
Weight g:
125
Temperature °C:
150
SG032NdB-00rh03
32 (h6)
40 +0.3/-0.3
-
4.5
10
529
640
236
150
Stabgreifer ø 32mm aus NdFeB, Messinggehäuse mit Passungstoleranz h6 und bearbeitbarer Haftfläche
Article number:
SG032NdB-00rh03
D mm:
32 (h6)
H mm:
40 +0.3/-0.3
Thread MxL:
-
A¹ mm:
4.5
B¹ mm:
10
Adhesive force* N:
529
Adhesive force 1* N ²:
640
Weight g:
236
Temperature °C:
150

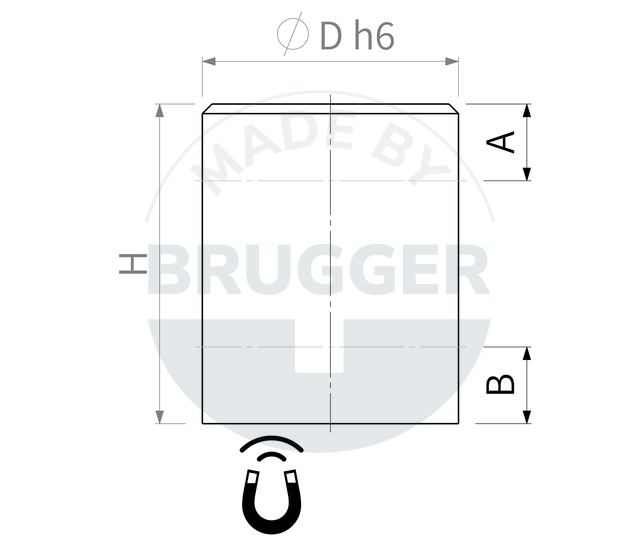

¹ max. length by which the deep pot magnet can be shortened or machined without damaging it.
² Max. adhesive force to be achieved if the deep pot magnet is shortened by dimension B. This value is reduced accordingly if the entire dimension B is not shortened.
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
