Raw magnets of Aluminum-nickel-cobalt (AlNiCo)

Horseshoe magnet made of AlNiCo, arch form

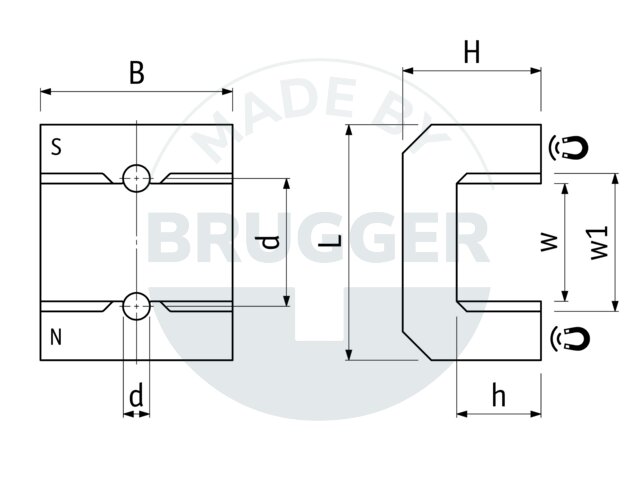

technical drawing Horseshoe magnet made of AlNiCo, bridge shape | © Brugger GmbH

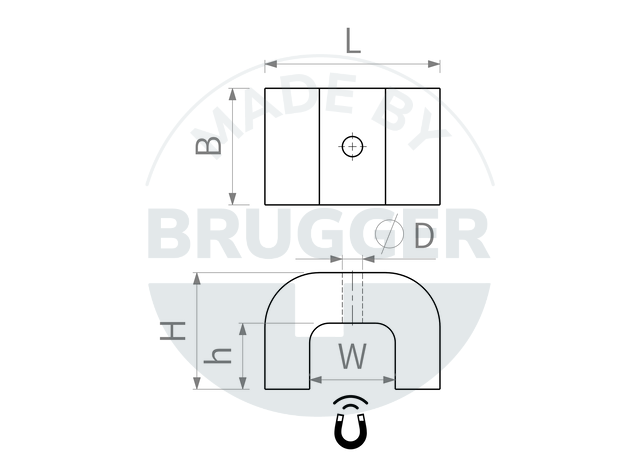

technical drawing Horseshoe magnet made of AlNiCo, bridge shape | © Brugger GmbH

PRODUCT INFORMATION:
For the production of AlNiCo magnets, moulds are often required. Therefore, not every desired dimension can be realised. Simple forms and small quantities can be cut from blocks or bars. If the surface is painted, the maximum operating temperature corresponds to the temperature resistance of the paint.

As an alternative to our standard product we offer:
» customised dimensions
» customised forms
» further qualities
» other colours


Data sheet
Article numberQualityD mmL mmB mmH mmh mmww1SurfaceAdhesive force* NWeight gTemperature °C
RM021ACSo88r-00ANC5- 22,2 7,9 11,3 3.36.35red1318180

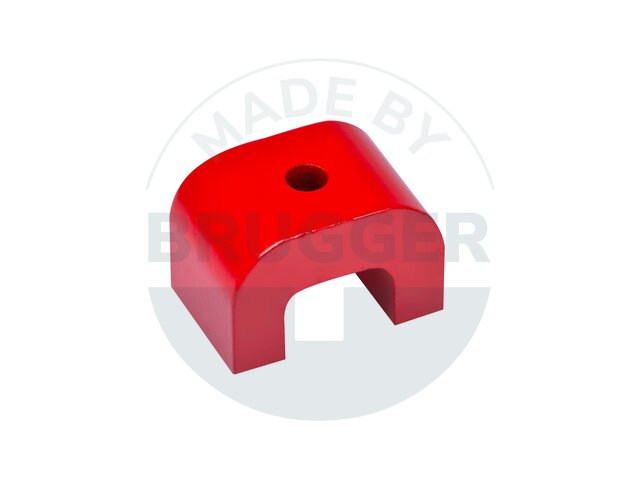

Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM021ACSo88r-00
Quality: ANC5
D mm: -
L mm: 22,2
B mm: 7,9
H mm: 11,3
h mm: 3.3
w: 6.35
Surface: red
Adhesive force* N: 13
Weight g: 18
Temperature °C: 180
RM021ACSo88rh00ANC5- 22,2 7,9 11,3 3.36.35raw1318450
Horseshoe magnet arch form | © Brugger GmbH
Article number: RM021ACSo88rh00
Quality: ANC5
D mm: -
L mm: 22,2
B mm: 7,9
H mm: 11,3
h mm: 3.3
w: 6.35
Surface: raw
Adhesive force* N: 13
Weight g: 18
Temperature °C: 450
RM022ACSo88r-00ANC57 22 25 17 98red3064180
Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM022ACSo88r-00
Quality: ANC5
D mm: 7
L mm: 22
B mm: 25
H mm: 17
h mm: 9
w: 8
Surface: red
Adhesive force* N: 30
Weight g: 64
Temperature °C: 180
RM022ACSo88rh00ANC57 22 25 17 98raw3064450
Horseshoe magnet arch form | © Brugger GmbH
Article number: RM022ACSo88rh00
Quality: ANC5
D mm: 7
L mm: 22
B mm: 25
H mm: 17
h mm: 9
w: 8
Surface: raw
Adhesive force* N: 30
Weight g: 64
Temperature °C: 450
RM030ACSo88r-00ANC55 30 20 20 1115red4570180

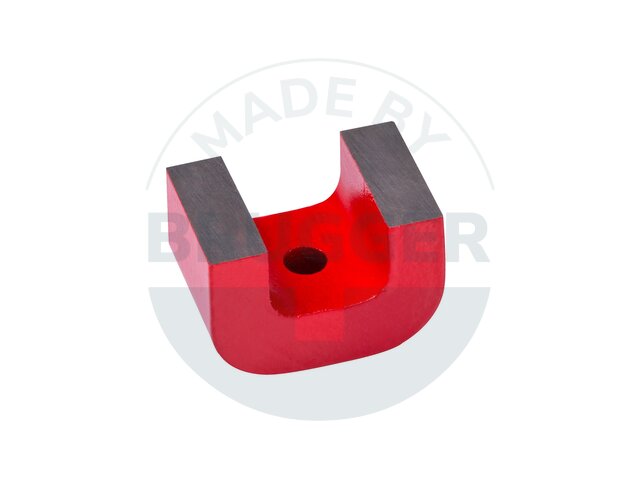

Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM030ACSo88r-00
Quality: ANC5
D mm: 5
L mm: 30
B mm: 20
H mm: 20
h mm: 11
w: 15
Surface: red
Adhesive force* N: 45
Weight g: 70
Temperature °C: 180
RM030ACSo88rh00ANC55 30 20 20 1115raw4570450
Horseshoe magnet arch form | © Brugger GmbH
Article number: RM030ACSo88rh00
Quality: ANC5
D mm: 5
L mm: 30
B mm: 20
H mm: 20
h mm: 11
w: 15
Surface: raw
Adhesive force* N: 45
Weight g: 70
Temperature °C: 450
RM038ACSo88r-00ANC54.7 39 25 25 1419red90140180
Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM038ACSo88r-00
Quality: ANC5
D mm: 4.7
L mm: 39
B mm: 25
H mm: 25
h mm: 14
w: 19
Surface: red
Adhesive force* N: 90
Weight g: 140
Temperature °C: 180
RM038ACSo88rh00ANC54.7 39 25 25 1419raw90140450
Horseshoe magnet arch form | © Brugger GmbH
Article number: RM038ACSo88rh00
Quality: ANC5
D mm: 4.7
L mm: 39
B mm: 25
H mm: 25
h mm: 14
w: 19
Surface: raw
Adhesive force* N: 90
Weight g: 140
Temperature °C: 450
RM044ACSo88r-00ANC55.2 45 30 30 1722red120209180
Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM044ACSo88r-00
Quality: ANC5
D mm: 5.2
L mm: 45
B mm: 30
H mm: 30
h mm: 17
w: 22
Surface: red
Adhesive force* N: 120
Weight g: 209
Temperature °C: 180
RM044ACSo88rh00ANC55.2 45 30 30 1722raw120209450
Horseshoe magnet arch form | © Brugger GmbH
Article number: RM044ACSo88rh00
Quality: ANC5
D mm: 5.2
L mm: 45
B mm: 30
H mm: 30
h mm: 17
w: 22
Surface: raw
Adhesive force* N: 120
Weight g: 209
Temperature °C: 450
RM058ACSo88r-00ANC58 57 44,5 35 2327.835red180498180

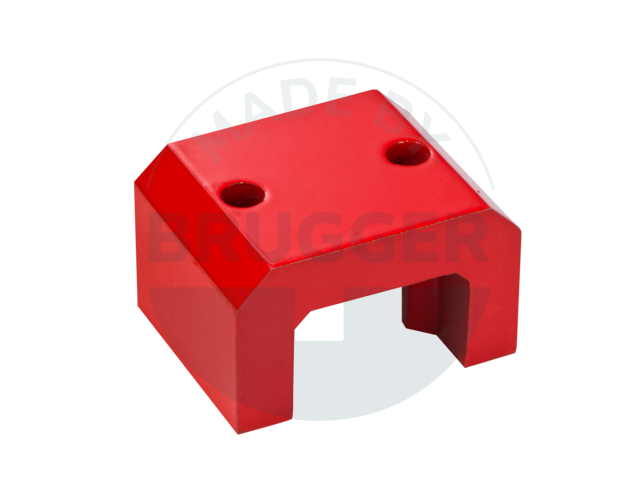

Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM058ACSo88r-00
Quality: ANC5
D mm: 8
L mm: 57
B mm: 44,5
H mm: 35
h mm: 23
w: 27.8
w1: 35
Surface: red
Adhesive force* N: 180
Weight g: 498
Temperature °C: 180
RM058ACSo88rh00ANC58 57 44,5 35 2327.835raw180498450

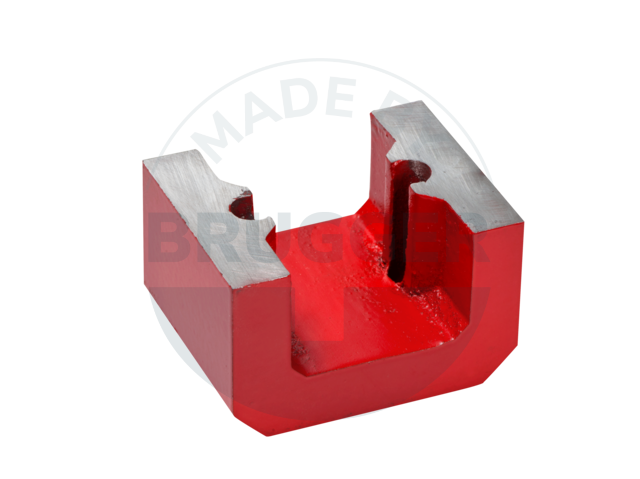

Horseshoe magnet arch form | © Brugger GmbH
Article number: RM058ACSo88rh00
Quality: ANC5
D mm: 8
L mm: 57
B mm: 44,5
H mm: 35
h mm: 23
w: 27.8
w1: 35
Surface: raw
Adhesive force* N: 180
Weight g: 498
Temperature °C: 450
RM070ACSo88r-00ANC58 70 57 41 253541red320906180
Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM070ACSo88r-00
Quality: ANC5
D mm: 8
L mm: 70
B mm: 57
H mm: 41
h mm: 25
w: 35
w1: 41
Surface: red
Adhesive force* N: 320
Weight g: 906
Temperature °C: 180
RM070ACSo88rh00ANC58 70 57 41 253541raw320906450
Horseshoe magnet arch form | © Brugger GmbH
Article number: RM070ACSo88rh00
Quality: ANC5
D mm: 8
L mm: 70
B mm: 57
H mm: 41
h mm: 25
w: 35
w1: 41
Surface: raw
Adhesive force* N: 320
Weight g: 906
Temperature °C: 450
RM078ACSo88r-00ANC59.5 79,6 82 54 3638.547.6red4701,570180
Horseshoe magnet arch form red | © Brugger GmbH
Article number: RM078ACSo88r-00
Quality: ANC5
D mm: 9.5
L mm: 79,6
B mm: 82
H mm: 54
h mm: 36
w: 38.5
w1: 47.6
Surface: red
Adhesive force* N: 470
Weight g: 1,570
Temperature °C: 180
RM078ACSo88rh00ANC59.5 79,6 82 54 3638.547.6raw4701,570450
Horseshoe magnet arch form | © Brugger GmbH
Article number: RM078ACSo88rh00
Quality: ANC5
D mm: 9.5
L mm: 79,6
B mm: 82
H mm: 54
h mm: 36
w: 38.5
w1: 47.6
Surface: raw
Adhesive force* N: 470
Weight g: 1,570
Temperature °C: 450

* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
