Raw magnets of Aluminum-nickel-cobalt (AlNiCo)

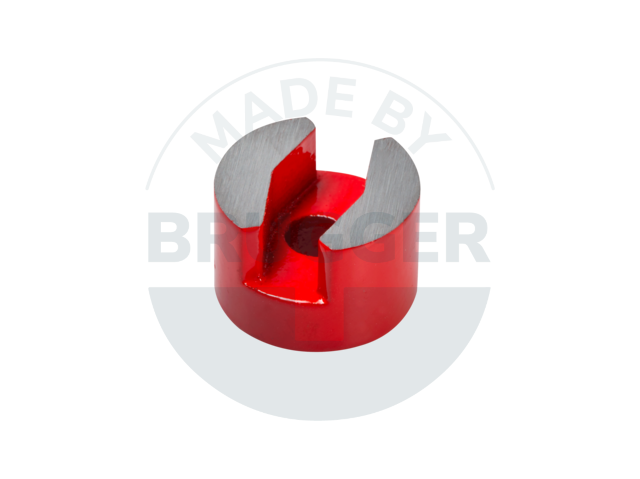

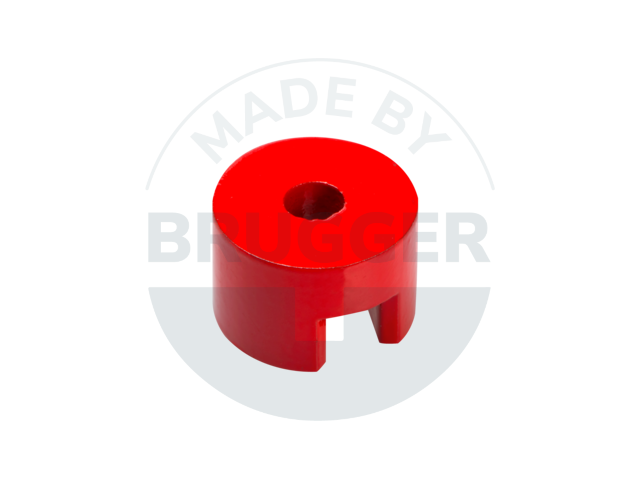

Horseshoe magnet made of AlNiCo, cylindrical form, with cylindrical bore

PRODUCT INFORMATION:
For the production of AlNiCo magnets, moulds are often required. Therefore, not every desired dimension can be realised. Simple forms and small quantities can be cut from blocks or bars. If the surface is painted, the maximum operating temperature corresponds to the temperature resistance of the paint.

As an alternative to our standard product we offer:
» customised dimensions
» customised forms
» further qualities
» other colours



Data sheet
Product variants

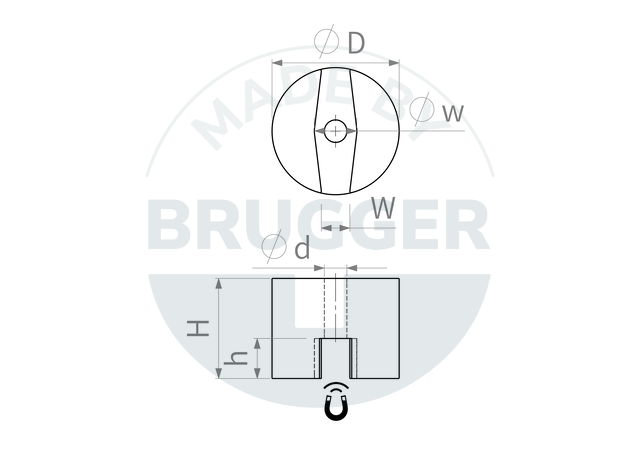

Article numberQualityD mmH mmAdhesive force* NWeight gTemperature °CSurfacewd mmh mmW mm
RM012ACSo88r-00ANC513 9,7 79180rot74,5 54.5
Article number: RM012ACSo88r-00
Quality: ANC5
D mm: 13
H mm: 9,7
Adhesive force* N: 7
Weight g: 9
Temperature °C: 180
Surface: rot
w: 7
d mm: 4,5
h mm: 5
W mm: 4.5
RM012ACSo88rh00ANC513 9,7 79450roh74,5 54.5
Article number: RM012ACSo88rh00
Quality: ANC5
D mm: 13
H mm: 9,7
Adhesive force* N: 7
Weight g: 9
Temperature °C: 450
Surface: roh
w: 7
d mm: 4,5
h mm: 5
W mm: 4.5
RM019ACSo88r-00ANC519.1 12,7 1825180rot8.74,8 6.55.6
Article number: RM019ACSo88r-00
Quality: ANC5
D mm: 19.1
H mm: 12,7
Adhesive force* N: 18
Weight g: 25
Temperature °C: 180
Surface: rot
w: 8.7
d mm: 4,8
h mm: 6.5
W mm: 5.6
RM019ACSo88rh00ANC519.1 12,7 1825450roh8.74,8 6.55.6
Article number: RM019ACSo88rh00
Quality: ANC5
D mm: 19.1
H mm: 12,7
Adhesive force* N: 18
Weight g: 25
Temperature °C: 450
Surface: roh
w: 8.7
d mm: 4,8
h mm: 6.5
W mm: 5.6
RM025ACSo88r-00ANC525.4 20 4072180rot8.54,5 85.6
Article number: RM025ACSo88r-00
Quality: ANC5
D mm: 25.4
H mm: 20
Adhesive force* N: 40
Weight g: 72
Temperature °C: 180
Surface: rot
w: 8.5
d mm: 4,5
h mm: 8
W mm: 5.6
RM025ACSo88rh00ANC525.4 20 4072450roh8.54,5 85.6
Article number: RM025ACSo88rh00
Quality: ANC5
D mm: 25.4
H mm: 20
Adhesive force* N: 40
Weight g: 72
Temperature °C: 450
Surface: roh
w: 8.5
d mm: 4,5
h mm: 8
W mm: 5.6
RM031ACSo88r-00ANC531.8 25,4 66132180rot12.77,5 12.78
Article number: RM031ACSo88r-00
Quality: ANC5
D mm: 31.8
H mm: 25,4
Adhesive force* N: 66
Weight g: 132
Temperature °C: 180
Surface: rot
w: 12.7
d mm: 7,5
h mm: 12.7
W mm: 8
RM031ACSo88rh00ANC531.8 25,4 66132450roh12.77,5 12.78
Article number: RM031ACSo88rh00
Quality: ANC5
D mm: 31.8
H mm: 25,4
Adhesive force* N: 66
Weight g: 132
Temperature °C: 450
Surface: roh
w: 12.7
d mm: 7,5
h mm: 12.7
W mm: 8
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
