Magnetic wheels Neodymium-iron-boron (NdFeB)

Magnetic wheels with two-pole pitch made of NdFeB, bore with fit tolerance H7 and groove

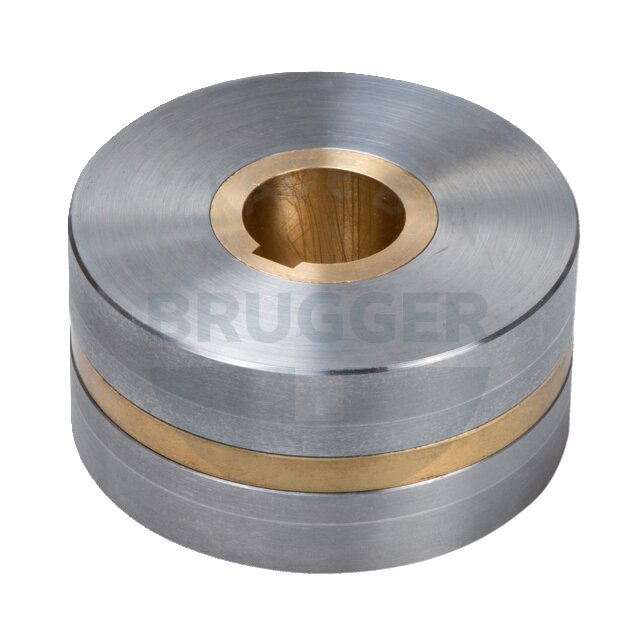

Magnetic wheels with two-pole pitch, bore and groove ⌀63mm | © Brugger GmbH
Magnetic roller with two-pole pitch with bore and groove | © Brugger GmbH
technical drawing Magnetic castorsHolding wheels with two-pole pitch made of NdFeB | © Brugger GmbH
Magnetic wheels with two-pole pitch, bore and groove ⌀63mm | © Brugger GmbH
Magnetic roller with two-pole pitch with bore and groove | © Brugger GmbH
technical drawing Magnetic castorsHolding wheels with two-pole pitch made of NdFeB | © Brugger GmbH

PRODUCT INFORMATION:
Magnetic wheels, also known as magnetic wheels, are particularly suitable for transporting sheet metal, pipes and profiles made of ferromagnetic materials. They offer a reliable solution for suspended and horizontal transport, even under difficult conditions. Due to their magnetic attraction, they attract the metal part to be conveyed and take on the function of a pressure roller.

Data sheet
Article numberD mmd mmH mmb mmh mmAdhesive force* NTemperature °C
HRZ2525+0.1/-0.1816+0.5/-0.538.645100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀25mm | © Brugger GmbH
Article number: HRZ25
D mm: 25+0.1/-0.1
d mm: 8
H mm: 16+0.5/-0.5
b mm: 3
h mm: 8.6
Adhesive force* N: 45
Temperature °C: 100
HRZ3232+0.1/-0.11018+0.5/-0.5411.165100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀32mm | © Brugger GmbH
Article number: HRZ32
D mm: 32+0.1/-0.1
d mm: 10
H mm: 18+0.5/-0.5
b mm: 4
h mm: 11.1
Adhesive force* N: 65
Temperature °C: 100
HRZ4040+0.1/-0.11220+0.5/-0.5413.190100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀40mm | © Brugger GmbH
Article number: HRZ40
D mm: 40+0.1/-0.1
d mm: 12
H mm: 20+0.5/-0.5
b mm: 4
h mm: 13.1
Adhesive force* N: 90
Temperature °C: 100
HRZ5050+0.1/-0.11625+0.5/-0.5517.3140100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀50mm | © Brugger GmbH
Article number: HRZ50
D mm: 50+0.1/-0.1
d mm: 16
H mm: 25+0.5/-0.5
b mm: 5
h mm: 17.3
Adhesive force* N: 140
Temperature °C: 100
HRZ6363+0.15/-0.152032+0.5/-0.5621.7270100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀63mm | © Brugger GmbH
Article number: HRZ63
D mm: 63+0.15/-0.15
d mm: 20
H mm: 32+0.5/-0.5
b mm: 6
h mm: 21.7
Adhesive force* N: 270
Temperature °C: 100
HRZ8080+0.15/-0.152540+0.5/-0.5826.7380100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀80mm | © Brugger GmbH
Article number: HRZ80
D mm: 80+0.15/-0.15
d mm: 25
H mm: 40+0.5/-0.5
b mm: 8
h mm: 26.7
Adhesive force* N: 380
Temperature °C: 100
HRZ100100+0.2/-0.23050+0.5/-0.5831.7580100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀100mm | © Brugger GmbH
Article number: HRZ100
D mm: 100+0.2/-0.2
d mm: 30
H mm: 50+0.5/-0.5
b mm: 8
h mm: 31.7
Adhesive force* N: 580
Temperature °C: 100
HRZ125125+0.2/-0.24062+0.5/-0.51242.11,000100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀125mm | © Brugger GmbH
Article number: HRZ125
D mm: 125+0.2/-0.2
d mm: 40
H mm: 62+0.5/-0.5
b mm: 12
h mm: 42.1
Adhesive force* N: 1,000
Temperature °C: 100
HRZ160160+0.25/-0.255080+0.5/-0.51452.61,800100 Download CAD file
Magnetic wheels with two-pole pitch, bore and groove ⌀160mm | © Brugger GmbH
Article number: HRZ160
D mm: 160+0.25/-0.25
d mm: 50
H mm: 80+0.5/-0.5
b mm: 14
h mm: 52.6
Adhesive force* N: 1,800
Temperature °C: 100

Das hier aufgeführte Haftrad mit Zweipolteilung ist der Top-Seller aus unserem Standardprogramm - erhältlich in verschiedenen Durchmessern.
Als Experte für Magnettechnik aus dem Schwarzwald entwickeln und fertigen wir bei Brugger Magnetsysteme natürlich auch maßgeschneiderte Magnetrollen und Hafträder für Ihre individuellen Industrieanwendungen.

Egal ob mehrpolig, größer oder kleiner oder auch profiliert – auf Anfrage setzen wir das passende magnetische Haftrad nach Ihren Vorgaben präzise hier bei uns im Haus für Sie um.

Hier sehen Sie einige Beispiele unserer vielfältigen Haftrad-Sonderanfertigungen für unsere Industriekunden:



Haben Sie spezielle Anforderungen an eine Magnetrolle?

Unsere technischen Anwendungsberater helfen Ihnen gerne weiter und finden gemeinsam mit Ihnen die optimale Lösung.
Kontaktieren Sie uns!


* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
