Metal plate with nano-adhesive pad, square, in various colours
Self-adhesive metal plates – Maximum flexibility without drilling
Would you like to make surfaces magnetic without having to drill a single hole? Our self-adhesive magnetic plates are the ideal solution. With an ultra-thin thickness of just 2 mm, they are the perfect complement to our rubber-coated magnets and have a wide range of applications in the workshop, the office or in industry.
Available in two high-quality versions to suit your design and quality requirements:
1. Rectangular magnetic discs (Classic & Functional)
These discs are perfectly matched to our Squareline magnet systems. You can choose from a range of finishes so they blend seamlessly into your surroundings:
- Colours: Black or white lacquered, as well as a classic metallic finish (‘polished look’, with a zinc coating).
- Adhesivestrength: Fitted with a super-adhesive nano adhesive film from 3M VHB for maximum security.
2. Square adhesive discs (Premium & Stylish)
For the highest standards in terms of appearance and material, we use magnetic stainless steel (1.4016). These plates are particularly durable and, thanks to their powder coating, offer exceptional quality:
- Colours: Black, white or in a classic stainless steel finish.
- Special feature: The high-quality powder coating ensures a modern finish and provides additional protection.
Important note: These products are not magnets, but serve as magnetic counterparts or adhesive bases.
| Article number | L mm | B mm | H mm | Surface | Colour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bl045VAQu00rh00 | 45 | 45 | 2 | Stainless steel finish | blank | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Square adhesive disc with blank nano-adhesive pad, 45 x 45 mm
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bl045VAQu00s-00 | 45 | 45 | 2 | powder-coated | black | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Square adhesive disc with nano-adhesive pad, black powder-coated, 45 x 45 mm
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bl045VAQu00w-00 | 45 | 45 | 2 | Powder-coated | white | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation instructions for optimum hold:
To ensure your adhesive plates remain firmly in place, please follow these simple steps:
- Preparing the surface: The surface must be completely free of grease and soap before application.
- Attaching: Remove the protective film, position the plate precisely and press down firmly.
- Care: Please do not use harsh cleaning agents or sharp objects on the surface, so as not to damage the stainless steel coating.
How to remove the plates without leaving any residue:
If you ever need to remove a plate, it’s best to proceed as follows:
- Heating: Carefully heat the plate with a hairdryer (please check the heat resistance of your surface first).
- Peel off: Carefully peel the plate off, starting from one corner.
- Pro tip: If necessary, use a plastic tool to prevent the material from warping. Please note that the plates are not designed for frequent replacement.
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
Related products:
-
NdFeB magnetic system, black rubber sheath, adhesive on both sides
-
NdFeB magnetic system, black rubber sheath, with threaded bushing
-
NdFeB magnetic system, white rubber sheath, with threaded bushing
-

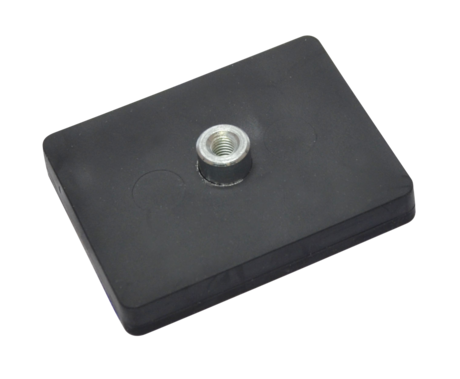

NdFeB magnetic system, black rubber sheath, with threaded bushing, rectangular
-

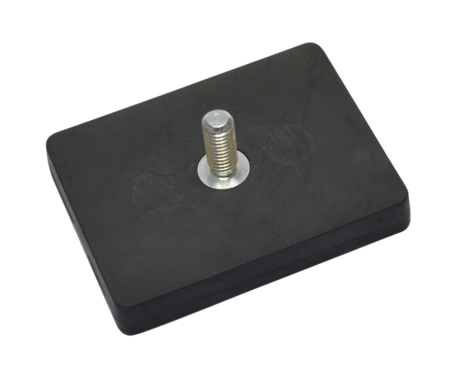

NdFeB magnetic system, black rubber sheath, with external thread, rectangular
