Rubberised magnet systems

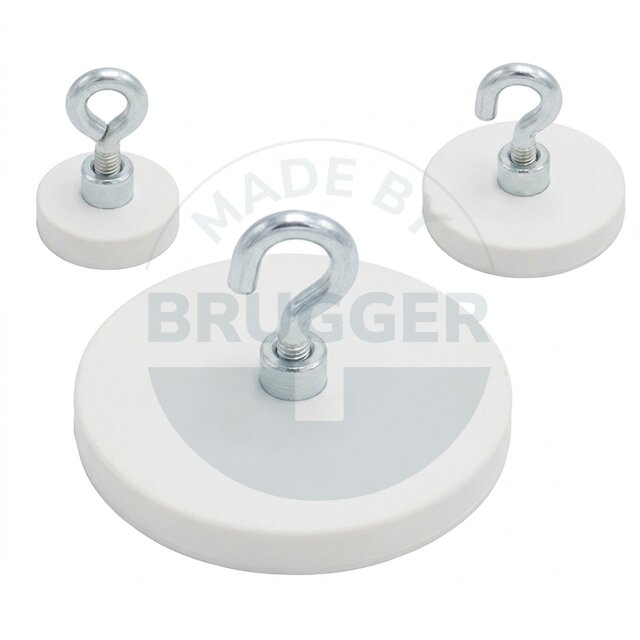

NdFeB magnetic system, white rubber coating, supplied as a complete system with a hook or eyelet

technical drawing Rubberised magnet system with round hook | © Brugger GmbH
technical drawing Rubberised magnet system with round eyelet | © Brugger GmbH
technical drawing Rubberised magnet system with round hook | © Brugger GmbH
technical drawing Rubberised magnet system with round eyelet | © Brugger GmbH

PRODUCT NOTE:

Fitted with a sturdy eyelet or hook, this magnetic system offers a smart solution for a wide range of tasks. The white rubber coating protects surfaces from scratches and abrasion, whilst the super-strong holding power of the neodymium magnet ensures a reliable grip. The complete systems ‘made by Brugger’ are perfect for delicate materials and ensure safe and flexible use when securing or hanging objects.

Thanks to the strong neodymium magnets on the underside, our hook and eyelet magnet systems adhere securely to ferromagnetic surfaces such as metal walls, whiteboards and fridges. Organise your workspace, workshop or kitchen with our rubber-coated magnetic systems! They adhere particularly strongly to thick steel beams or directly to the housings of your machines, making them ideal for hanging tools, air guns or cleaning equipment. Our powerhouses are also perfectly suited for the hassle-free installation of control cabinets, key boxes, smoke detectors and other useful items. By the way: when camping, our white hook magnets and eyelet magnets are visually unobtrusive and ideal for attaching items directly to the bodywork of your camper van.

As an alternative to our standard range, we also offer bespoke solutions:
» Other colours for the rubber coating
» Harder or softer rubber coating


Data sheet
Product variants
Article numberD mmH mmHGes mmThread MAdhesive force* NShear force* NWeight gTemperature °CDescription
AS022NdHK04w-0022 6 30M458181560Hook Download CAD file

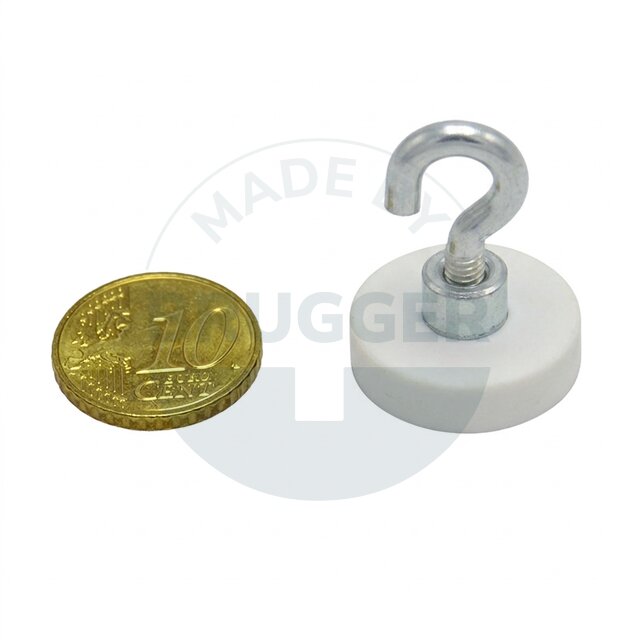

Round NdFeB magnetic system with a white rubber coating and a hook, 22 mm in diameter, rubber-coated hook magnet

Article number: AS022NdHK04w-00
D mm: 22
H mm: 6
HGes mm: 30
Thread M: M4
Adhesive force* N: 58
Shear force* N: 18
Weight g: 15
Temperature °C: 60
Description: Hook
AS022NdOe04W-0122 6 30M458181460Eyelet Download CAD file

Round NdFeB magnetic system with a black rubber coating and eyelet, 22 mm in diameter

Article number: AS022NdOe04W-01
D mm: 22
H mm: 6
HGes mm: 30
Thread M: M4
Adhesive force* N: 58
Shear force* N: 18
Weight g: 14
Temperature °C: 60
Description: Eyelet
AS031NDHK04W-0131 6 30M489252660Hook Download CAD file

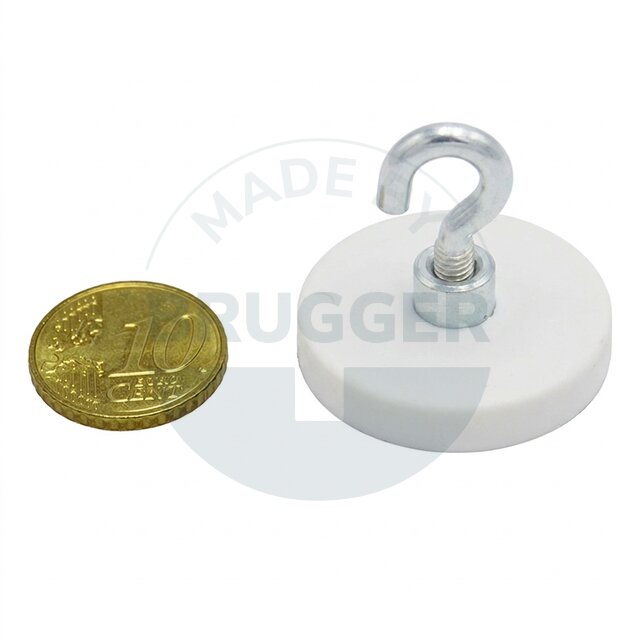

Round NdFeB magnetic system with a white rubber coating and a hook, ø 31 mm, rubber-coated hook magnet

Article number: AS031NDHK04W-01
D mm: 31
H mm: 6
HGes mm: 30
Thread M: M4
Adhesive force* N: 89
Shear force* N: 25
Weight g: 26
Temperature °C: 60
Description: Hook
AS031NDOE04W-0131 6 30M489252560Eyelet Download CAD file

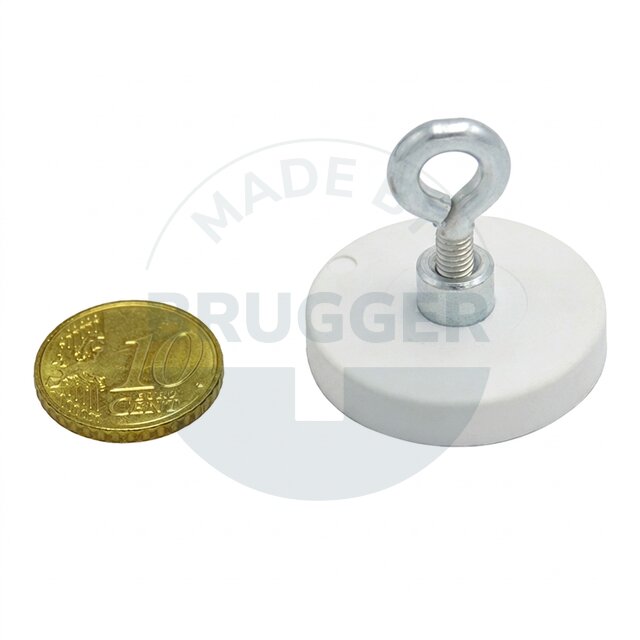

Round NdFeB magnetic system with a white rubber coating and eyelet, 31 mm in diameter

Article number: AS031NDOE04W-01
D mm: 31
H mm: 6
HGes mm: 30
Thread M: M4
Adhesive force* N: 89
Shear force* N: 25
Weight g: 25
Temperature °C: 60
Description: Eyelet
AS043NDHK04W-0043 6 29M4100383260Hook Download CAD file

Round NdFeB magnetic system with a black rubber coating and hook, 34 mm diameter, rubber-coated hook magnet

Article number: AS043NDHK04W-00
D mm: 43
H mm: 6
HGes mm: 29
Thread M: M4
Adhesive force* N: 100
Shear force* N: 38
Weight g: 32
Temperature °C: 60
Description: Hook
AS043NDOE04W-0243 6 28M4100383360Eyelet Download CAD file

Round NdFeB magnetic system with a white rubber coating and eyelet, 43 mm in diameter

Article number: AS043NDOE04W-02
D mm: 43
H mm: 6
HGes mm: 28
Thread M: M4
Adhesive force* N: 100
Shear force* N: 38
Weight g: 33
Temperature °C: 60
Description: Eyelet
AS066NDHK05W-0166 8,5 40M52508510380Hook Download CAD file

Round NdFeB magnetic system with a white rubber coating and hook, 66 mm diameter, rubber-coated hook magnet

Article number: AS066NDHK05W-01
D mm: 66
H mm: 8,5
HGes mm: 40
Thread M: M5
Adhesive force* N: 250
Shear force* N: 85
Weight g: 103
Temperature °C: 80
Description: Hook
AS066NDOE05W-0166 8,5 38M52508510380Eyelet Download CAD file

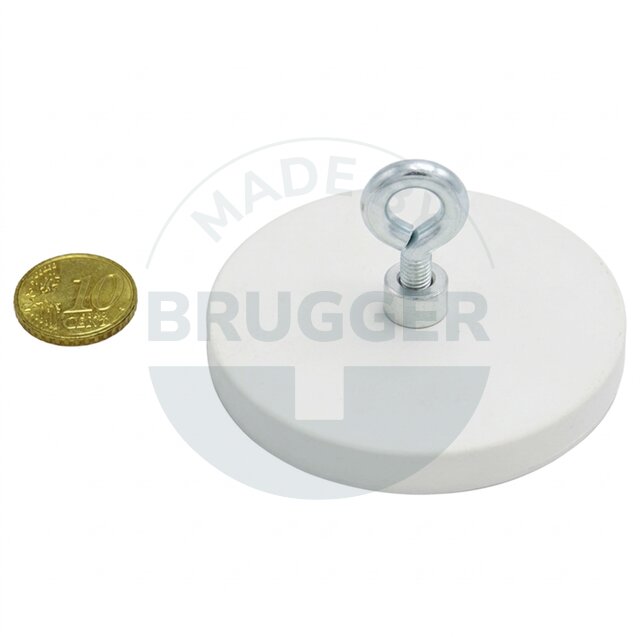

Round NdFeB magnetic system with a white rubber sheath and eyelet, 66 mm in diameter

Article number: AS066NDOE05W-01
D mm: 66
H mm: 8,5
HGes mm: 38
Thread M: M5
Adhesive force* N: 250
Shear force* N: 85
Weight g: 103
Temperature °C: 80
Description: Eyelet

Example of use:
Rubber-coated magnet systems with hooks or eyelets are handy for attaching all sorts of objects directly to machine housings.


* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
