S6GNd 6 +0.1/-0.1 20 +0.2/-0.2 M3x6 6 3 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S6GNd
D mm:
6 +0.1/-0.1
H mm:
20 +0.2/-0.2
Thread MxL:
M3x6
Adhesive force* N:
6
Weight g:
3
Temperature °C:
80
S8GNd 8 +0.1/-0.1 20 +0.2/-0.2 M3x5 12 7 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S8GNd
D mm:
8 +0.1/-0.1
H mm:
20 +0.2/-0.2
Thread MxL:
M3x5
Adhesive force* N:
12
Weight g:
7
Temperature °C:
80
S10GNd 10 +0.1/-0.1 20 +0.2/-0.2 M4x7 24 10 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S10GNd
D mm:
10 +0.1/-0.1
H mm:
20 +0.2/-0.2
Thread MxL:
M4x7
Adhesive force* N:
24
Weight g:
10
Temperature °C:
80

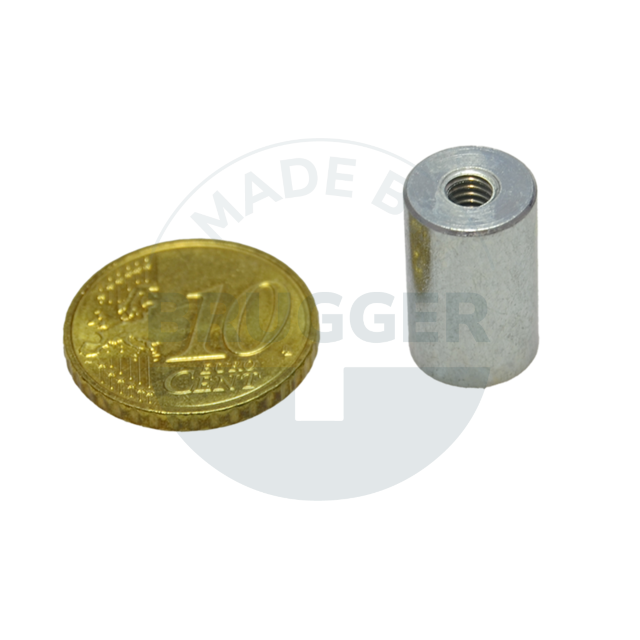

S10GKNd 10 +0.1/-0.1 16 +0.2/-0.2 M4x7 24 8 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S10GKNd
D mm:
10 +0.1/-0.1
H mm:
16 +0.2/-0.2
Thread MxL:
M4x7
Adhesive force* N:
24
Weight g:
8
Temperature °C:
80
S13GNd 13 +0.1/-0.1 20 +0.2/-0.2 M4x7 60 19 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S13GNd
D mm:
13 +0.1/-0.1
H mm:
20 +0.2/-0.2
Thread MxL:
M4x7
Adhesive force* N:
60
Weight g:
19
Temperature °C:
80

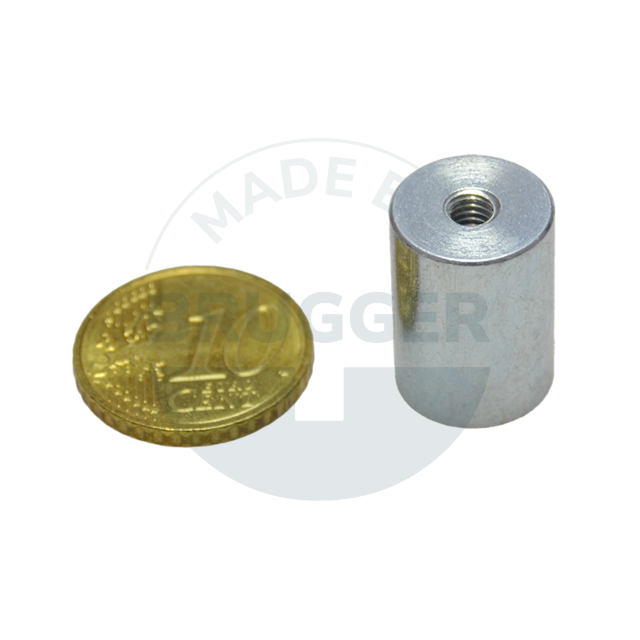

S13GKNd 13 +0.1/-0.1 18 +0.2/-0.2 M4x7 60 17 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S13GKNd
D mm:
13 +0.1/-0.1
H mm:
18 +0.2/-0.2
Thread MxL:
M4x7
Adhesive force* N:
60
Weight g:
17
Temperature °C:
80
S16GNd 16 +0.1/-0.1 20 +0.2/-0.2 M4x7 90 29 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S16GNd
D mm:
16 +0.1/-0.1
H mm:
20 +0.2/-0.2
Thread MxL:
M4x7
Adhesive force* N:
90
Weight g:
29
Temperature °C:
80

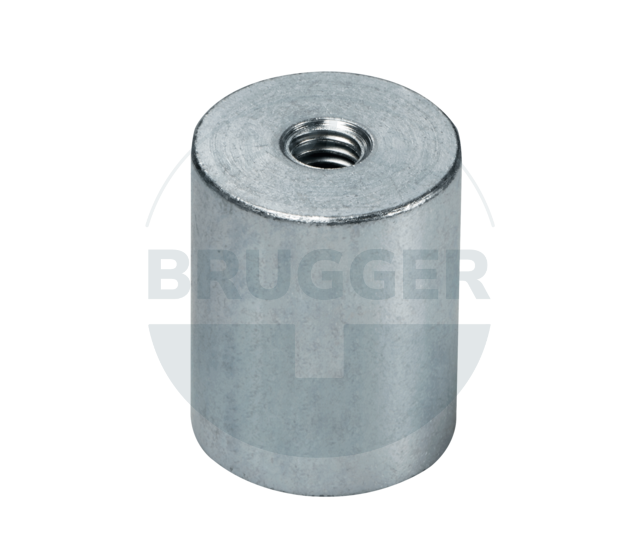

S20GNd 20 +0.1/-0.1 25 +0.2/-0.2 M6x9 135 58 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S20GNd
D mm:
20 +0.1/-0.1
H mm:
25 +0.2/-0.2
Thread MxL:
M6x9
Adhesive force* N:
135
Weight g:
58
Temperature °C:
80
S25GNd 25 +0.1/-0.1 35 +0.2/-0.2 M6x9 190 129 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S25GNd
D mm:
25 +0.1/-0.1
H mm:
35 +0.2/-0.2
Thread MxL:
M6x9
Adhesive force* N:
190
Weight g:
129
Temperature °C:
80
S32GNd 32 +0.1/-0.1 40 +0.2/-0.2 M8x12 340 244 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S32GNd
D mm:
32 +0.1/-0.1
H mm:
40 +0.2/-0.2
Thread MxL:
M8x12
Adhesive force* N:
340
Weight g:
244
Temperature °C:
80
S40GNd 40 +0.1/-0.1 50 +0.2/-0.2 M8x12 700 483 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S40GNd
D mm:
40 +0.1/-0.1
H mm:
50 +0.2/-0.2
Thread MxL:
M8x12
Adhesive force* N:
700
Weight g:
483
Temperature °C:
80
S50GNd 50 +0.1/-0.1 60 +0.2/-0.2 M10x12 1,000 898 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S50GNd
D mm:
50 +0.1/-0.1
H mm:
60 +0.2/-0.2
Thread MxL:
M10x12
Adhesive force* N:
1,000
Weight g:
898
Temperature °C:
80
S63GNd 63 +0.1/-0.1 65 +0.2/-0.2 M12x14 1,700 1,566 80
Bookmark variant for price request
Remove variant from price request
Download CAD file
Show item image and description
Article number:
S63GNd
D mm:
63 +0.1/-0.1
H mm:
65 +0.2/-0.2
Thread MxL:
M12x14
Adhesive force* N:
1,700
Weight g:
1,566
Temperature °C:
80
