Raw magnets of Neodymium-iron-boron (NdFeB)

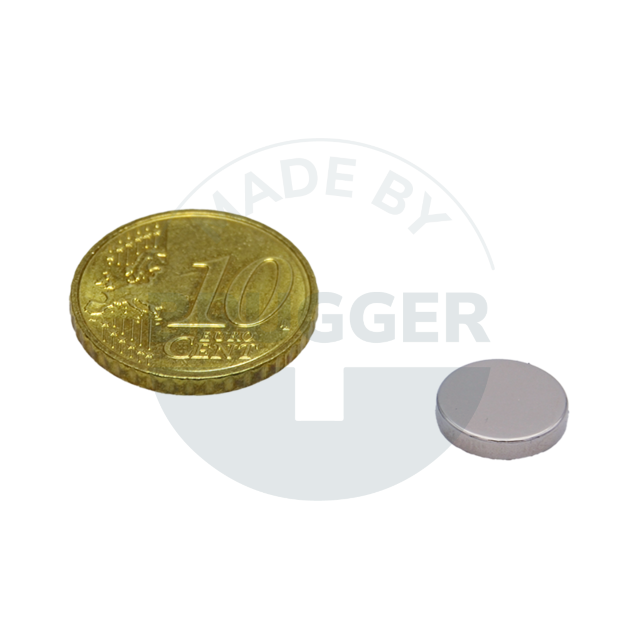

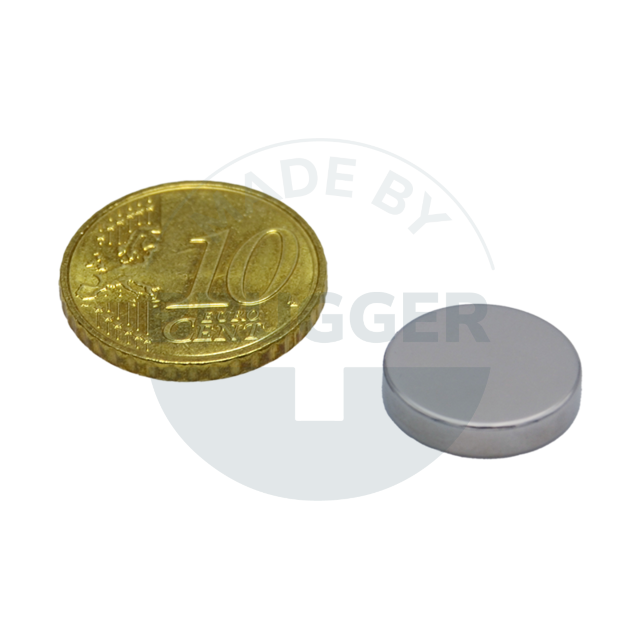

Disc magnet made of NdFeB, up to max. 150°C

technical drawing Disc magnet | © Brugger GmbH
technical drawing Disc magnet | © Brugger GmbH

PRODUCT NOTE:
NdFeB magnets can be produced in almost any desired dimensions and without tooling costs. Small quantities are therefore also possible. They are nickel-copper-nickel (NiCuNi) coated to protect against corrosion. The specified temperature refers to the maximum operating temperature of the material. Due to the geometry, however, the
resistance may be reduced.

As an alternative to the standard, we also offer customised solutions:
" customer-specific dimensions
" modified magnetisation direction
" other types of magnetisation
" other qualities up to N54
" increased operating temperature up to 220°C
" self-adhesive on one side with additional foil
" customer-specific shapes (e.g. cubes, cones, etc.).e.g. cube, cone, sphere, segments)
" other coatings (e.g. galvanised, gold-plated, epoxy-coated)

Data sheet
Article numberQualityD mmH mmAdhesive force* NWeight gTemperature °CMagnetisation
MNASm2x2N35HN35H2 +0.1/-0.12 +0.1/-0.10.80.1120axial
Article number: MNASm2x2N35H
Quality: N35H
D mm: 2 +0.1/-0.1
H mm: 2 +0.1/-0.1
Adhesive force* N: 0.8
Weight g: 0.1
Temperature °C: 120
Magnetisation: axial
RM003NdSb99ng48N45SH3 +0.1/-0.12 +0.1/-0.130.1150axial
Article number: RM003NdSb99ng48
Quality: N45SH
D mm: 3 +0.1/-0.1
H mm: 2 +0.1/-0.1
Adhesive force* N: 3
Weight g: 0.1
Temperature °C: 150
Magnetisation: axial
RM004NdSb99ng25N45SH4 +0.1/-0.13 +0.1/-0.150.2150axial
Disc magnet of NdFeB, until 80°C | © Brugger GmbH
Article number: RM004NdSb99ng25
Quality: N45SH
D mm: 4 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 5
Weight g: 0.2
Temperature °C: 150
Magnetisation: axial
MNASm5x2N42HN42H5 +0.1/-0.12 +0.1/-0.14.50.3120axial
Article number: MNASm5x2N42H
Quality: N42H
D mm: 5 +0.1/-0.1
H mm: 2 +0.1/-0.1
Adhesive force* N: 4.5
Weight g: 0.3
Temperature °C: 120
Magnetisation: axial
RM005NdSb99ng10N35H5 +0.1/-0.15 +0.1/-0.15.50.7120axial
Article number: RM005NdSb99ng10
Quality: N35H
D mm: 5 +0.1/-0.1
H mm: 5 +0.1/-0.1
Adhesive force* N: 5.5
Weight g: 0.7
Temperature °C: 120
Magnetisation: axial
RM005NdSb99ng90N45SH5 +0.1/-0.13 +0.1/-0.170.4150axial
Article number: RM005NdSb99ng90
Quality: N45SH
D mm: 5 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 7
Weight g: 0.4
Temperature °C: 150
Magnetisation: axial
RM006NdSb99ng49N45SH6 +0.1/-0.14 +0.1/-0.1120.9150axial
Article number: RM006NdSb99ng49
Quality: N45SH
D mm: 6 +0.1/-0.1
H mm: 4 +0.1/-0.1
Adhesive force* N: 12
Weight g: 0.9
Temperature °C: 150
Magnetisation: axial
RM006NdSb99ng65N45SH6 +0.1/-0.13 +0.1/-0.190.6150axial
Article number: RM006NdSb99ng65
Quality: N45SH
D mm: 6 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 9
Weight g: 0.6
Temperature °C: 150
Magnetisation: axial
RM007NdSb99ng23N45SH7 +0.1/-0.16 +0.1/-0.1171.7150axial
Disc magnet of NdFeB, until 80°C | © Brugger GmbH
Article number: RM007NdSb99ng23
Quality: N45SH
D mm: 7 +0.1/-0.1
H mm: 6 +0.1/-0.1
Adhesive force* N: 17
Weight g: 1.7
Temperature °C: 150
Magnetisation: axial
RM008NdSb99ng55N45SH8 +0.1/-0.13 +0.1/-0.1141.1150axial
Article number: RM008NdSb99ng55
Quality: N45SH
D mm: 8 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 14
Weight g: 1.1
Temperature °C: 150
Magnetisation: axial
RM008NdSb99ng56N45SH8 +0.1/-0.14 +0.1/-0.1171.5150axial
Article number: RM008NdSb99ng56
Quality: N45SH
D mm: 8 +0.1/-0.1
H mm: 4 +0.1/-0.1
Adhesive force* N: 17
Weight g: 1.5
Temperature °C: 150
Magnetisation: axial
MNASm10x2N35HN35H10 +0.1/-0.12 +0.1/-0.1101.2120axial
Article number: MNASm10x2N35H
Quality: N35H
D mm: 10 +0.1/-0.1
H mm: 2 +0.1/-0.1
Adhesive force* N: 10
Weight g: 1.2
Temperature °C: 120
Magnetisation: axial
RM010NdSb99ng9G N45SH10 +0.1/-0.13 +0.1/-0.1191.8150axial
Article number: RM010NdSb99ng9G
Quality: N45SH
D mm: 10 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 19
Weight g: 1.8
Temperature °C: 150
Magnetisation: axial
RM010NdSb99ng9MN45SH10 +0.1/-0.15 +0.1/-0.1273150axial
Article number: RM010NdSb99ng9M
Quality: N45SH
D mm: 10 +0.1/-0.1
H mm: 5 +0.1/-0.1
Adhesive force* N: 27
Weight g: 3
Temperature °C: 150
Magnetisation: axial
RM010NdSb99ng32N35H10 +0.1/-0.15 +0.1/-0.1212.9120axial
Article number: RM010NdSb99ng32
Quality: N35H
D mm: 10 +0.1/-0.1
H mm: 5 +0.1/-0.1
Adhesive force* N: 21
Weight g: 2.9
Temperature °C: 120
Magnetisation: axial
RM012NdSb99ng08N40H12 +0.1/-0.110 +0.1/-0.1498.6120axial
Article number: RM012NdSb99ng08
Quality: N40H
D mm: 12 +0.1/-0.1
H mm: 10 +0.1/-0.1
Adhesive force* N: 49
Weight g: 8.6
Temperature °C: 120
Magnetisation: axial
RM012NdSb99ng51N45SH12 +0.1/-0.13 +0.1/-0.1232.6150axial
Article number: RM012NdSb99ng51
Quality: N45SH
D mm: 12 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 23
Weight g: 2.6
Temperature °C: 150
Magnetisation: axial
RM012NdSb99ng52N45SH12 +0.1/-0.16 +0.1/-0.1405.1150axial
Article number: RM012NdSb99ng52
Quality: N45SH
D mm: 12 +0.1/-0.1
H mm: 6 +0.1/-0.1
Adhesive force* N: 40
Weight g: 5.1
Temperature °C: 150
Magnetisation: axial
MNASm14x3N35HN35H14 +0.1/-0.13 +0.1/-0.1243.5120axial
Article number: MNASm14x3N35H
Quality: N35H
D mm: 14 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 24
Weight g: 3.5
Temperature °C: 120
Magnetisation: axial
RM014NdSb99ng06N48H14 +0.1/-0.13 +0.1/-0.1303.5120axial
Article number: RM014NdSb99ng06
Quality: N48H
D mm: 14 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 30
Weight g: 3.5
Temperature °C: 120
Magnetisation: axial
RM014NdSb99ng18N45SH14 +0.1/-0.13 +0.1/-0.1283.5150axial
Article number: RM014NdSb99ng18
Quality: N45SH
D mm: 14 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 28
Weight g: 3.5
Temperature °C: 150
Magnetisation: axial
RM015NdSb99ng57N45SH15 +0.1/-0.12 +0.1/-0.1212.7150axial
Article number: RM015NdSb99ng57
Quality: N45SH
D mm: 15 +0.1/-0.1
H mm: 2 +0.1/-0.1
Adhesive force* N: 21
Weight g: 2.7
Temperature °C: 150
Magnetisation: axial
RM015NdSb99ng59N45SH15 +0.1/-0.13 +0.3/-0.3304150axial
Article number: RM015NdSb99ng59
Quality: N45SH
D mm: 15 +0.1/-0.1
H mm: 3 +0.3/-0.3
Adhesive force* N: 30
Weight g: 4
Temperature °C: 150
Magnetisation: axial
RM016NdSb99ng11N45SH16 +0.1/-0.18 +0.1/-0.17112150axial
Article number: RM016NdSb99ng11
Quality: N45SH
D mm: 16 +0.1/-0.1
H mm: 8 +0.1/-0.1
Adhesive force* N: 71
Weight g: 12
Temperature °C: 150
Magnetisation: axial
RM018NdSb99ng21N45SH18 +0.1/-0.13 +0.1/-0.1375.8150axial
Article number: RM018NdSb99ng21
Quality: N45SH
D mm: 18 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 37
Weight g: 5.8
Temperature °C: 150
Magnetisation: axial
RM023NdSb99ng15N45SH23 +0.1/-0.121 +0.1/-0.119866150axial
Article number: RM023NdSb99ng15
Quality: N45SH
D mm: 23 +0.1/-0.1
H mm: 21 +0.1/-0.1
Adhesive force* N: 198
Weight g: 66
Temperature °C: 150
Magnetisation: axial
RM024NdSb99ng10N45SH24 +0.1/-0.13 +0.1/-0.15210150axial
Article number: RM024NdSb99ng10
Quality: N45SH
D mm: 24 +0.1/-0.1
H mm: 3 +0.1/-0.1
Adhesive force* N: 52
Weight g: 10
Temperature °C: 150
Magnetisation: axial
RM038NdSb99ng05N45SH38 +0.1/-0.14 +0.1/-0.111134150axial
Article number: RM038NdSb99ng05
Quality: N45SH
D mm: 38 +0.1/-0.1
H mm: 4 +0.1/-0.1
Adhesive force* N: 111
Weight g: 34
Temperature °C: 150
Magnetisation: axial
RM040NdSb99ng09N45SH40 +0.1/-0.14 +0.1/-0.111738150axial
Article number: RM040NdSb99ng09
Quality: N45SH
D mm: 40 +0.1/-0.1
H mm: 4 +0.1/-0.1
Adhesive force* N: 117
Weight g: 38
Temperature °C: 150
Magnetisation: axial
RM048NdSb99ng04N45SH48 +0.1/-0.15 +0.1/-0.117569150axial
Article number: RM048NdSb99ng04
Quality: N45SH
D mm: 48 +0.1/-0.1
H mm: 5 +0.1/-0.1
Adhesive force* N: 175
Weight g: 69
Temperature °C: 150
Magnetisation: axial
Magnetised by the height (H)
* The forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm (1kg~10N). A deviation of up to -10% from the specified value is possible in exceptional cases. In general, the value is exceeded. The type of application (installation situation, temperatures, counter anchors, etc.) sometimes influence the forces enormously. The values given are for orientation purposes. Let our experts advise you.
